SKU: LMK30-UU

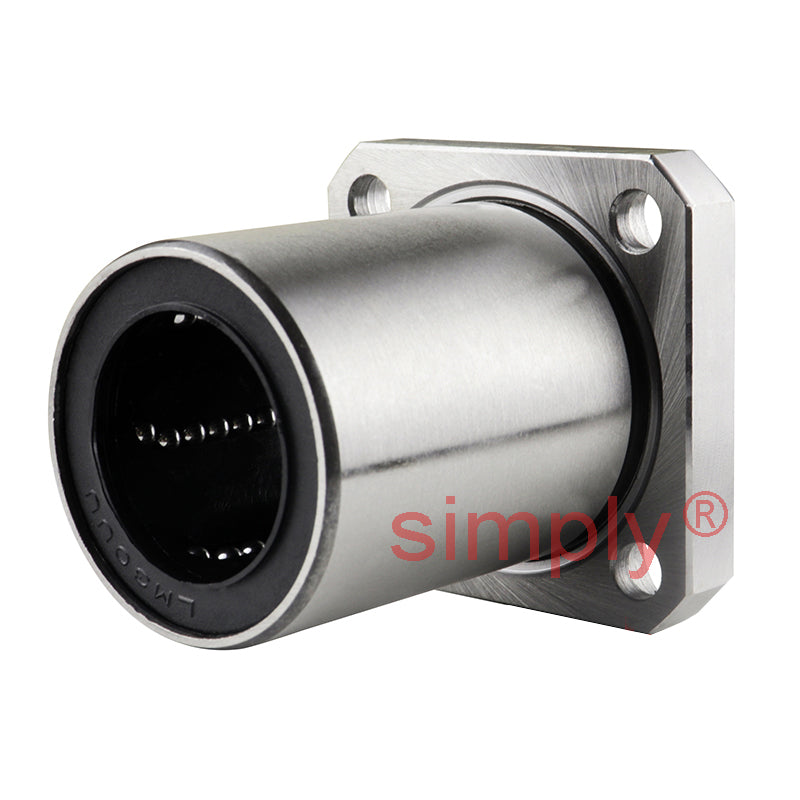

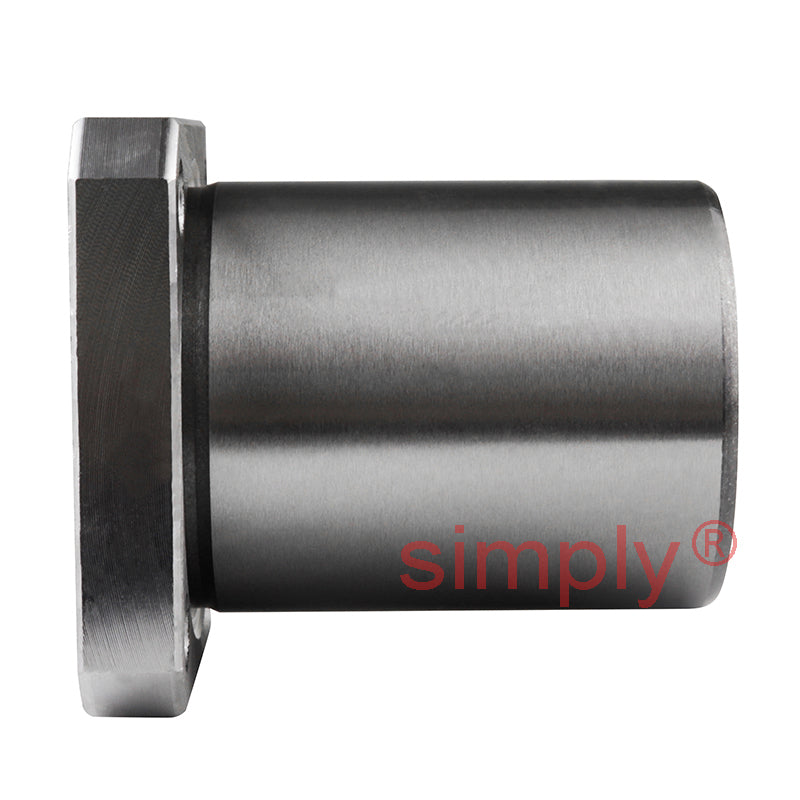

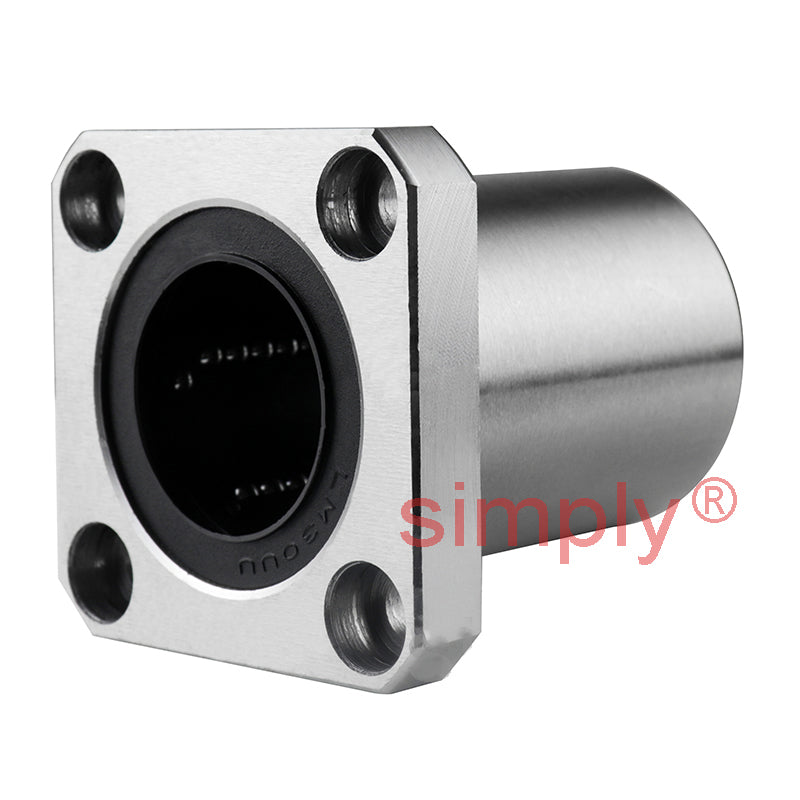

LMK30UU Metric Square Flanged Linear Ball Bushing 30x45x64mm

LMK30UU Metric Square Flanged Linear Ball Bushing 30x45x64mm
$33.82 ex VAT
$33.82 ex VAT
Sale Sold out

In stock

Price Break
3+ $22.65
5+ $21.38
9+ $21.13
19+ $20.87
49+ $20.62
74+ $20.36
99+ $19.09
199+ $18.84
249+ $18.58
499+ $18.33
999+ $17.82

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Outside Diameter:
45mm
Length:
64mm
Seals / Shields:
Rubber Sealed
Technical
Ball Rows 6
dr 30mm
dr Tolerance 0 to -0.010mm
D 45mm
D Tolerance 0 to -0.016mm
L 64mm
L Tolerance 0 to -0.3mm
D1 74mm
D1 Tolerance 0 to -0.2mm
K 58mm
H 10mm
PCD 60mm
Mounting Hole 6.6x11x6.5mm
Basic Load Dynamic Rating C 1570N
Basic Load Static Rating C0 2750N
Mass 0.344g
Material Standard
Style Square Flanged
