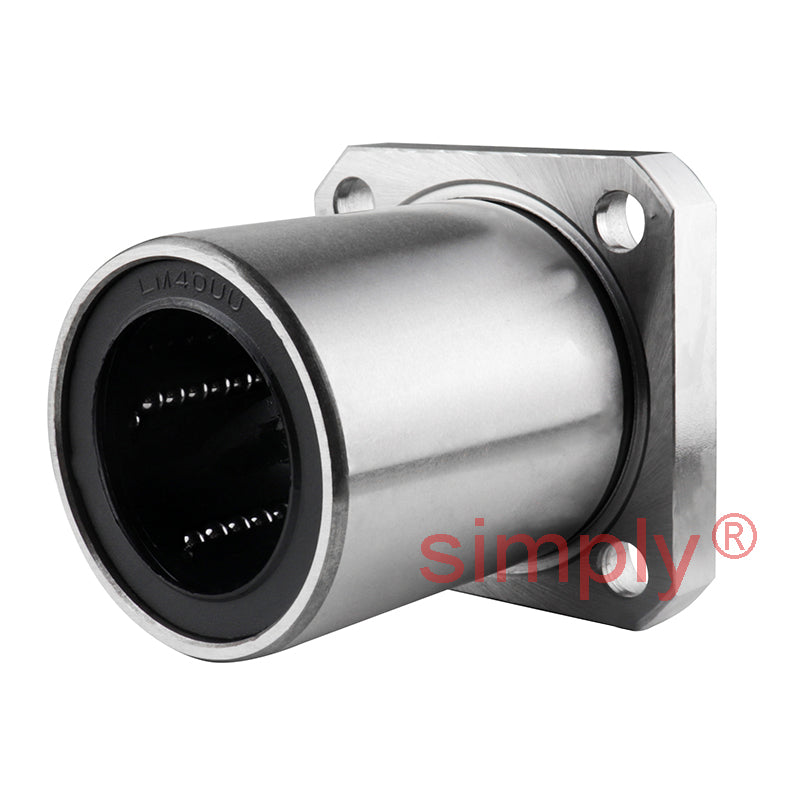

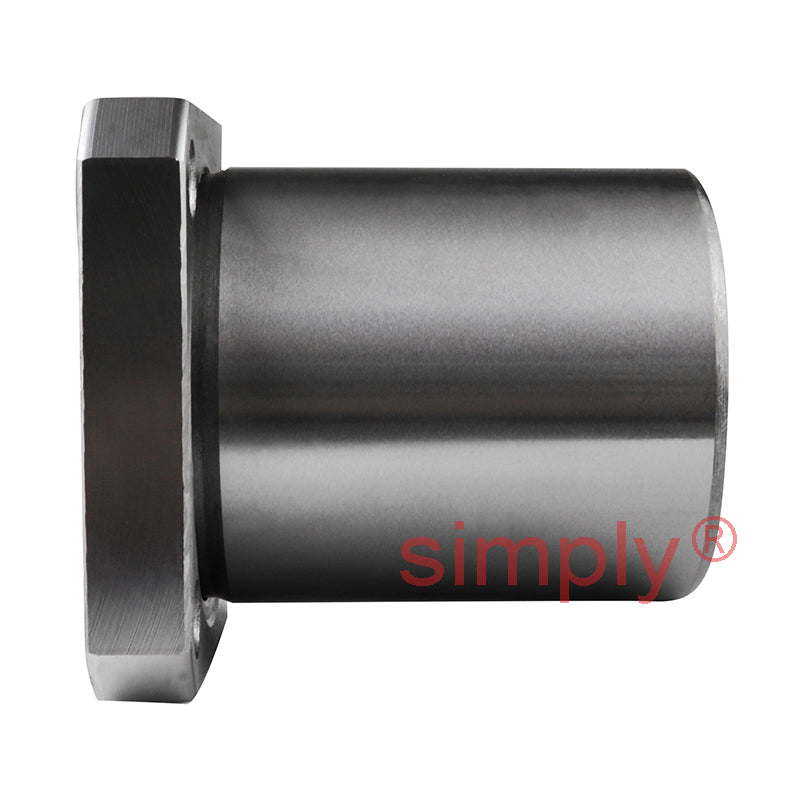

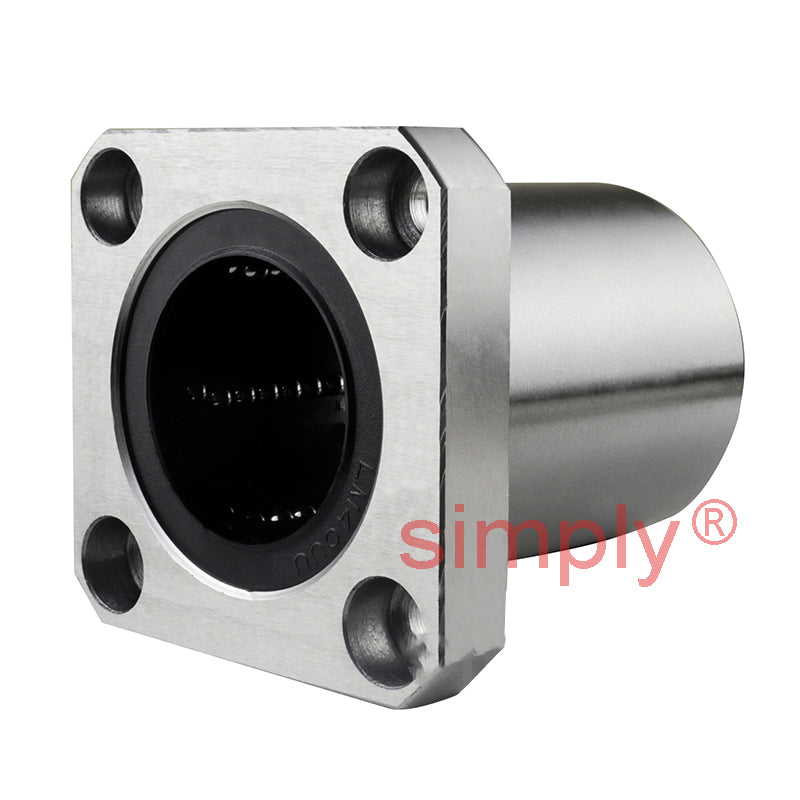

• LMK40UU Metric Square Flanged Linear Ball Bushing 40x60x80mm
  • LMK40UU Metric Square Flanged Linear Ball Bushing 40x60x80mm
  • LMK40UU Metric Square Flanged Linear Ball Bushing 40x60x80mm
1 3

SKU: LMK40-UU

LMK40UU Metric Square Flanged Linear Ball Bushing 40x60x80mm

LMK40UU Metric Square Flanged Linear Ball Bushing 40x60x80mm
$39.69 ex VAT
$39.69 ex VAT
Sale Sold out

In stock

Price Break
3+ $26.58
5+ $25.09
9+ $24.79
19+ $24.49
49+ $24.19
74+ $23.90
99+ $22.40
199+ $22.10
249+ $21.81
499+ $21.51
999+ $20.91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Outside Diameter:
60mm
Length:
80mm
Seals / Shields:
Rubber Sealed

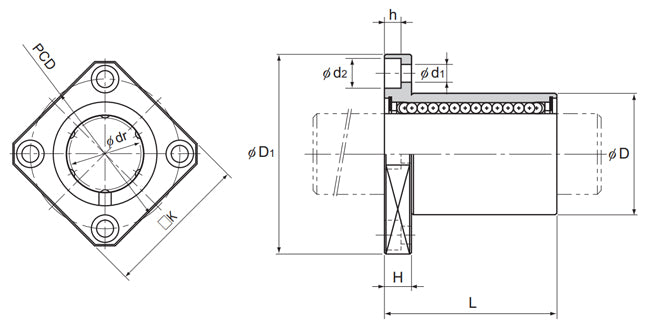

Technical
Ball Rows 6
dr 40mm
dr Tolerance 0 to -0.012mm
D 60mm
D Tolerance 0 to -0.019mm
L 80mm
L Tolerance 0 to -0.3mm
D1 96mm
D1 Tolerance 0 to -0.3mm
K 75mm
H 13mm
PCD 78mm
Mounting Hole 9x14x8.6mm
Basic Load Dynamic Rating C 2160N
Basic Load Static Rating C0 4020N
Mass 0.79g
Material Standard
Style Square Flanged
