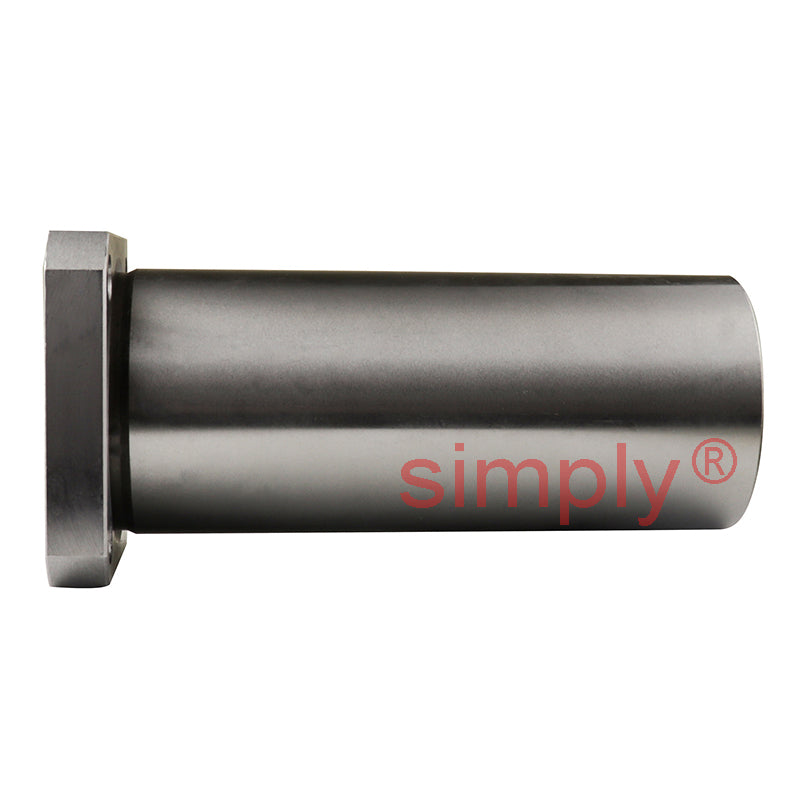

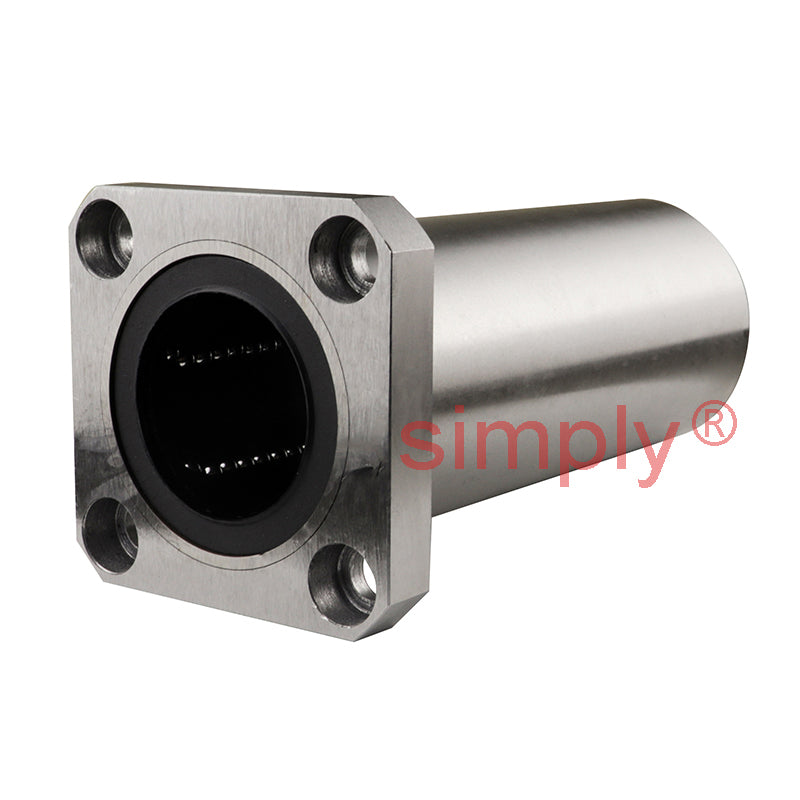

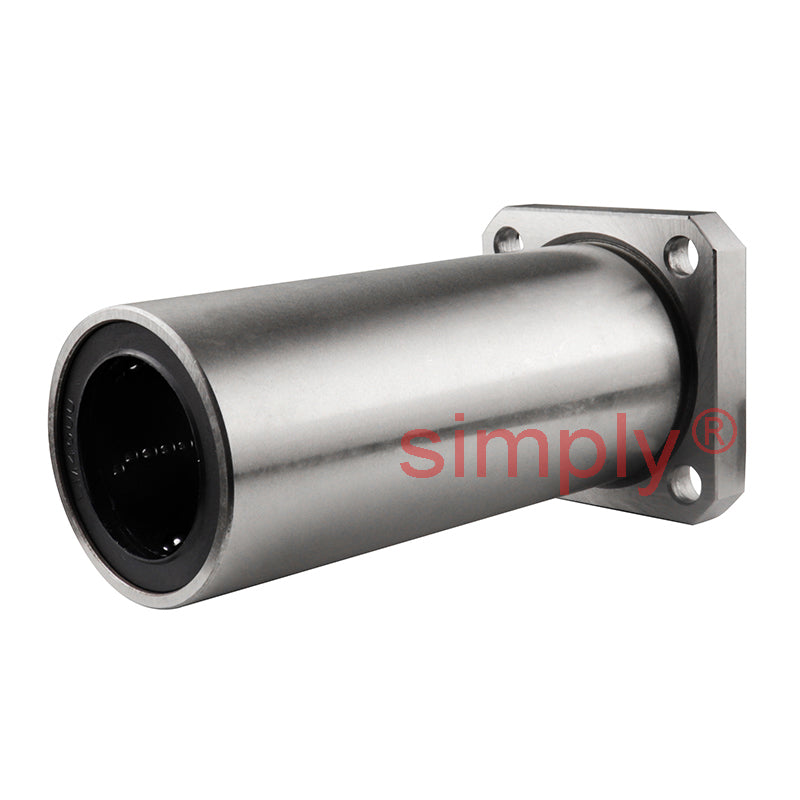

• LMK50LUU Long Series Metric Square Flanged Linear Ball Bushing 50x80x192mm
  • LMK50LUU Long Series Metric Square Flanged Linear Ball Bushing 50x80x192mm
  • LMK50LUU Long Series Metric Square Flanged Linear Ball Bushing 50x80x192mm
1 3

SKU: LMK50-L-UU

LMK50LUU Long Series Metric Square Flanged Linear Ball Bushing 50x80x192mm

LMK50LUU Long Series Metric Square Flanged Linear Ball Bushing 50x80x192mm
$167.93 ex VAT
$167.93 ex VAT
Sale Sold out

In stock

Price Break
3+ $112.49
5+ $106.17
9+ $104.91
19+ $103.64
49+ $102.38
74+ $101.12
99+ $94.80
199+ $93.53
249+ $92.27
499+ $91.00
999+ $88.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50mm
Outside Diameter:
80mm
Length:
192mm
Seals / Shields:
Rubber Sealed
Technical
Ball Rows 6
dr 50mm
dr Tolerance 0 to -0.015mm
D 80mm
D Tolerance 0 to -0.022mm
L 192mm
L Tolerance 0 to -0.4mm
D1 116mm
D1 Tolerance 0 to -0.3mm
K 92mm
H 13mm
PCD 98mm
Mounting Hole 9x14x8.6mm
Basic Load Dynamic Rating C 6080N
Basic Load Static Rating C0 15900N
Mass 2.952g
Material Standard
Style Square Flanged
