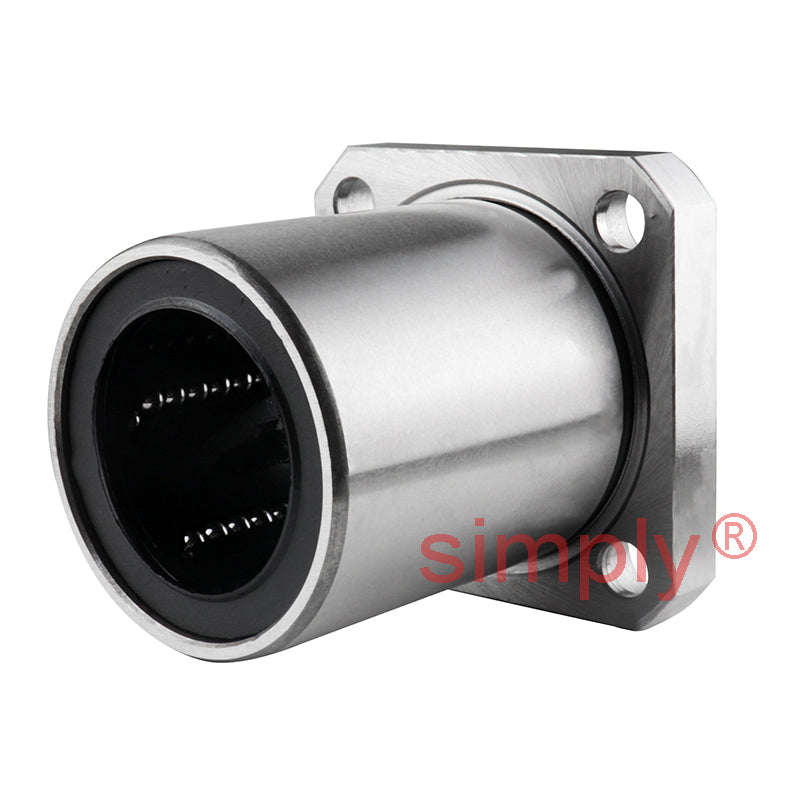

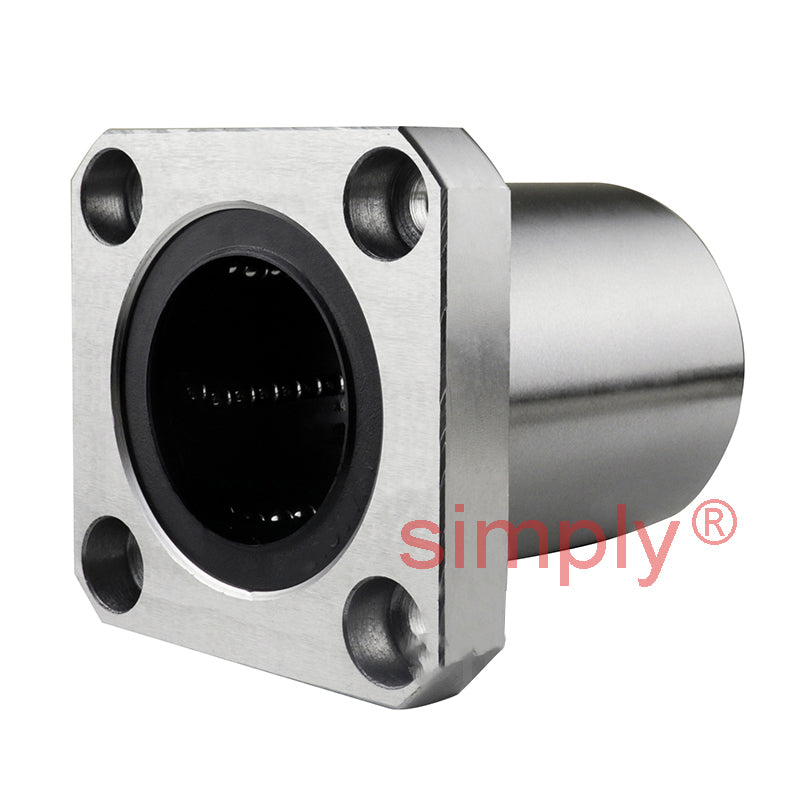

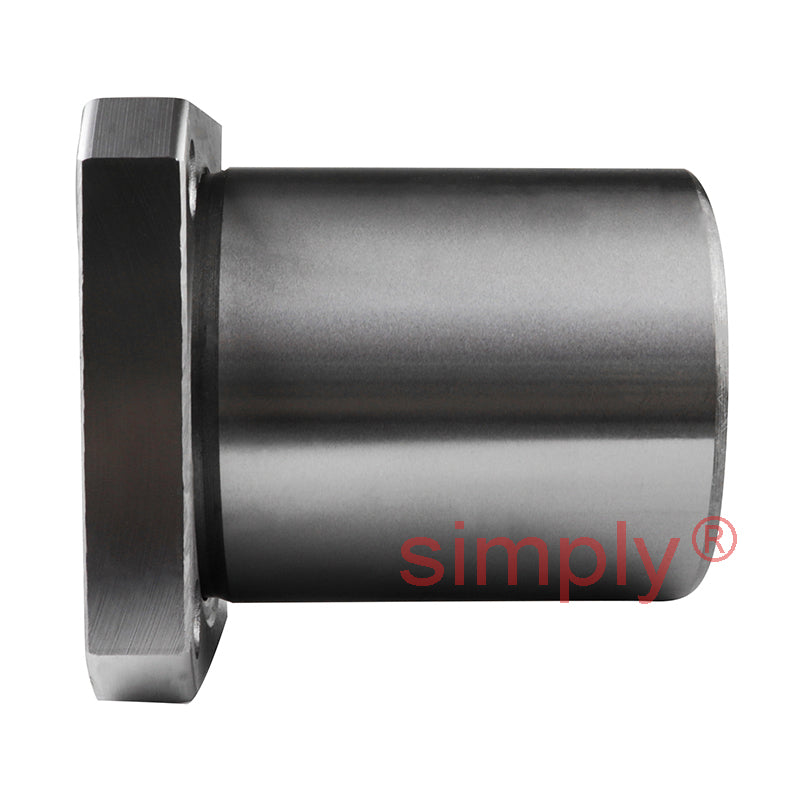

• LMK50UU Metric Square Flanged Linear Ball Bushing 50x80x100mm
  • LMK50UU Metric Square Flanged Linear Ball Bushing 50x80x100mm
  • LMK50UU Metric Square Flanged Linear Ball Bushing 50x80x100mm
1 3

SKU: LMK50.UU.EU

LMK50UU Metric Square Flanged Linear Ball Bushing 50x80x100mm

LMK50UU Metric Square Flanged Linear Ball Bushing 50x80x100mm
$103.98 ex VAT
$103.98 ex VAT
Sale Sold out

In stock

Price Break
3+ $69.65
5+ $65.74
9+ $64.96
19+ $64.17
49+ $63.39
74+ $62.61
99+ $58.69
199+ $57.91
249+ $57.13
499+ $56.35
999+ $54.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50mm
Outside Diameter:
80mm
Length:
100mm
Seals / Shields:
Rubber Sealed
Technical
Ball Rows 6
dr 50mm
dr Tolerance 0 to -0.012mm
D 80mm
D Tolerance 0 to -0.019mm
L 100mm
L Tolerance 0 to -0.3mm
D1 116mm
D1 Tolerance 0 to -0.3mm
K 92mm
H 13mm
PCD 98mm
Mounting Hole 9x14x8.6mm
Basic Load Dynamic Rating C 3820N
Basic Load Static Rating C0 7940N
Mass 1.705g
Material Standard
Style Square Flanged
