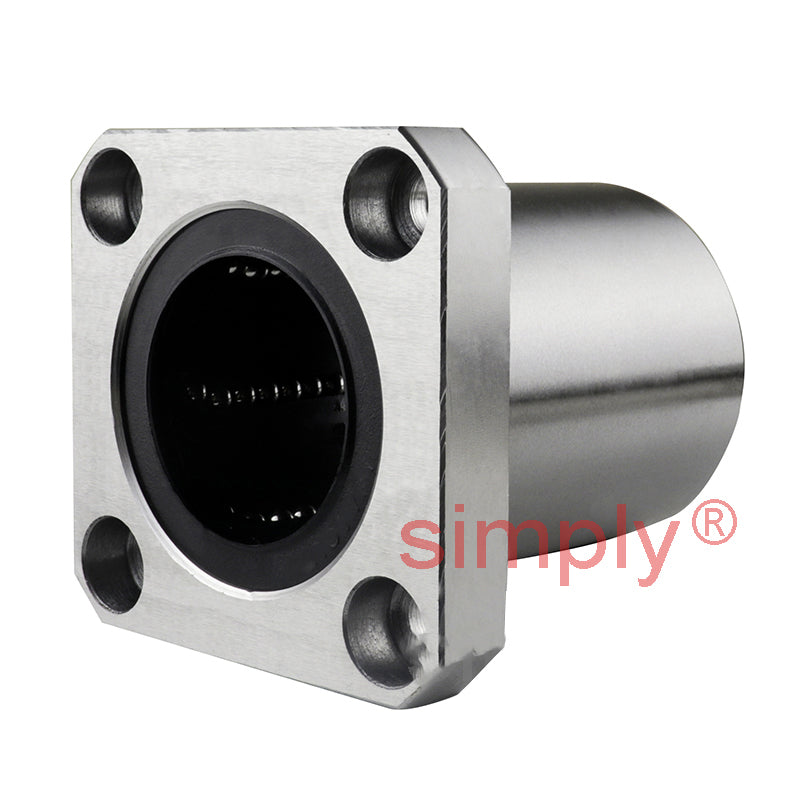

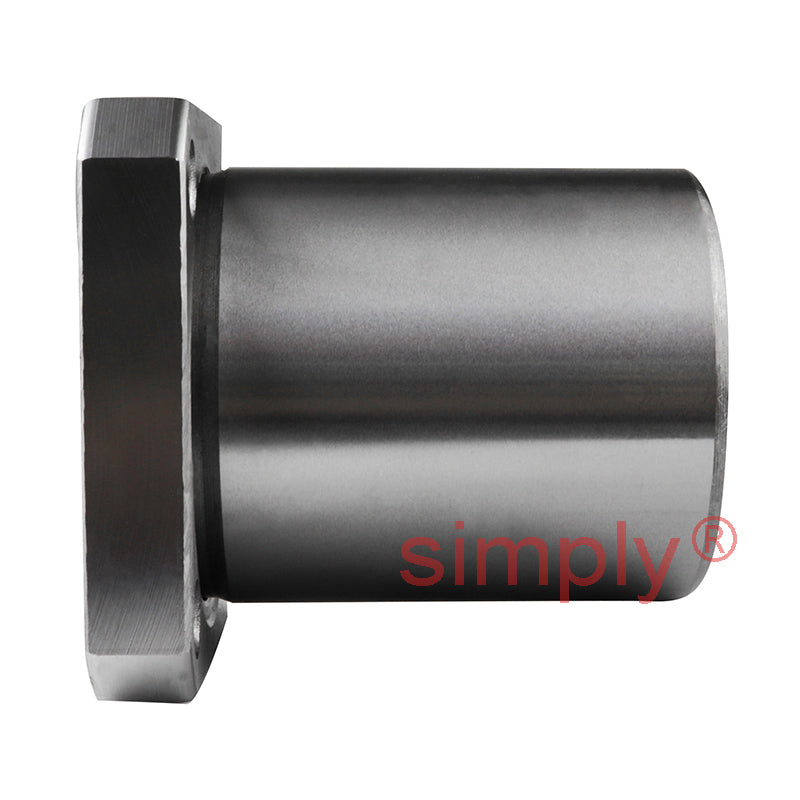

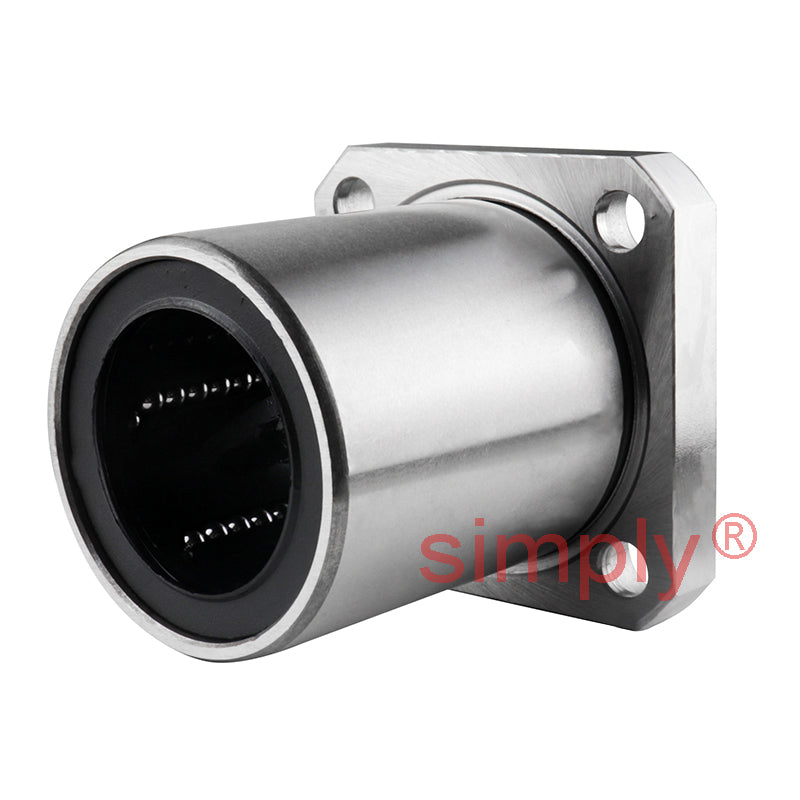

• LMK60UU Metric Square Flanged Linear Ball Bushing 60x90x110mm
  • LMK60UU Metric Square Flanged Linear Ball Bushing 60x90x110mm
  • LMK60UU Metric Square Flanged Linear Ball Bushing 60x90x110mm
1 3

SKU: LMK60.UU.EU

LMK60UU Metric Square Flanged Linear Ball Bushing 60x90x110mm

LMK60UU Metric Square Flanged Linear Ball Bushing 60x90x110mm
$128.25 ex VAT
$128.25 ex VAT
Sale Sold out

In stock

Price Break
3+ $85.90
5+ $81.08
9+ $80.11
19+ $79.15
49+ $78.18
74+ $77.22
99+ $72.39
199+ $71.42
249+ $70.46
499+ $69.49
999+ $67.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
60mm
Outside Diameter:
90mm
Length:
110mm
Seals / Shields:
Rubber Sealed
Technical
Ball Rows 6
dr 60mm
dr Tolerance 0 to -0.015mm
D 90mm
D Tolerance 0 to -0.022mm
L 110mm
L Tolerance 0 to -0.3mm
D1 134mm
D1 Tolerance 0 to -0.3mm
K 106mm
H 18mm
PCD 112mm
Mounting Hole 11x17.5x10.8mm
Basic Load Dynamic Rating C 4710N
Basic Load Static Rating C0 10000N
Mass 2.278g
Material Standard
Style Square Flanged
