SKU: LMK8.UU.EU

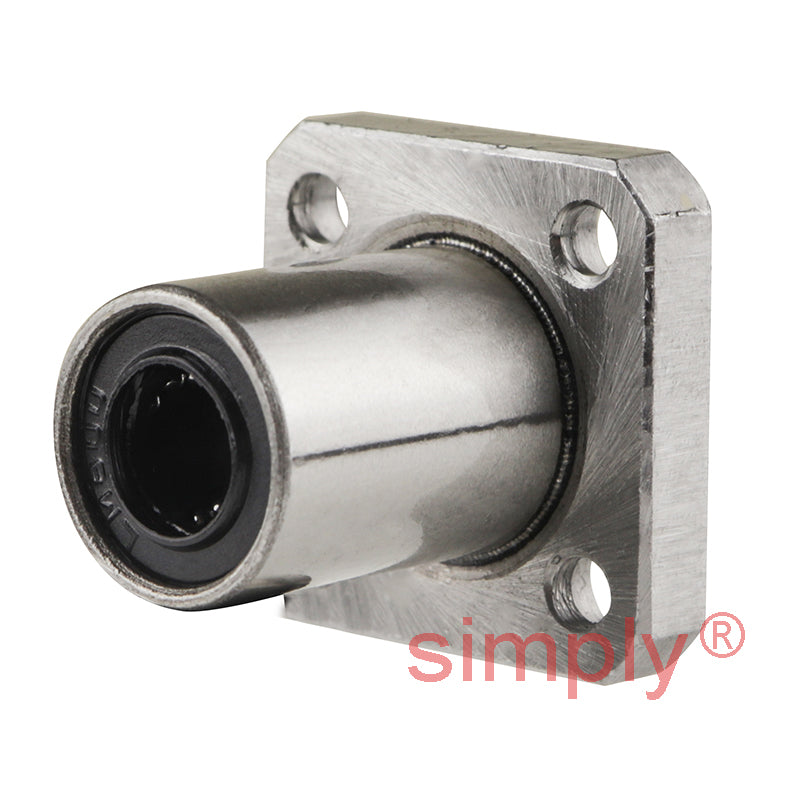

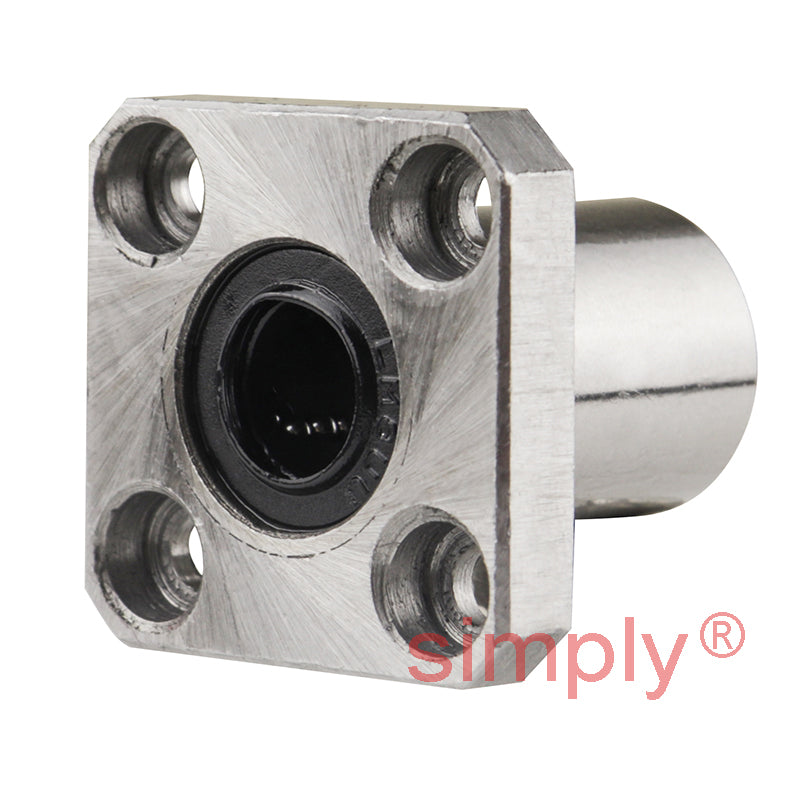

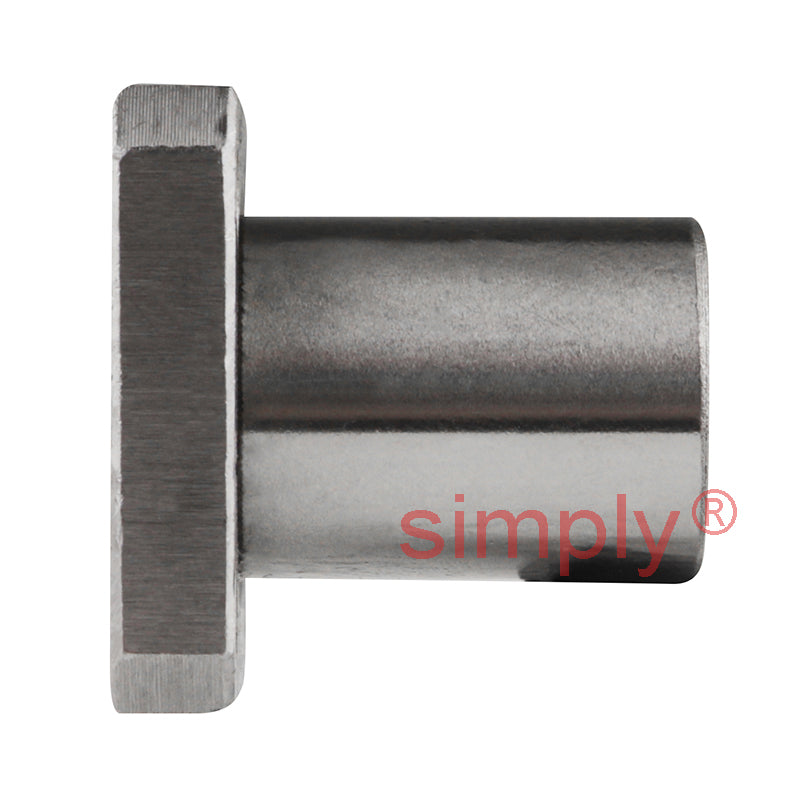

LMK8UU Metric Square Flanged Linear Ball Bushing 8x15x24mm

LMK8UU Metric Square Flanged Linear Ball Bushing 8x15x24mm
$16.95 ex VAT
$16.95 ex VAT
Sale Sold out

In stock

Price Break
3+ $11.36
5+ $10.72
9+ $10.59
19+ $10.46
49+ $10.33
74+ $10.21
99+ $9.57
199+ $9.44
249+ $9.31
499+ $9.19
999+ $8.93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
8mm
Outside Diameter:
15mm
Length:
24mm
Seals / Shields:
Rubber Sealed
Technical
Ball Rows 4
dr 8mm
dr Tolerance 0 to -0.009mm
D 15mm
D Tolerance 0 to -0.011mm
L 24mm
L Tolerance 0 to -0.2mm
D1 32mm
D1 Tolerance 0 to -0.2mm
K 25mm
H 5mm
PCD 24mm
Mounting Hole 3.4x6.5x3.3mm
Basic Load Dynamic Rating C 265N
Basic Load Static Rating C0 402N
Mass 0.026g
Material Standard
Style Square Flanged
