SKU: LR10x13x12.5-MB

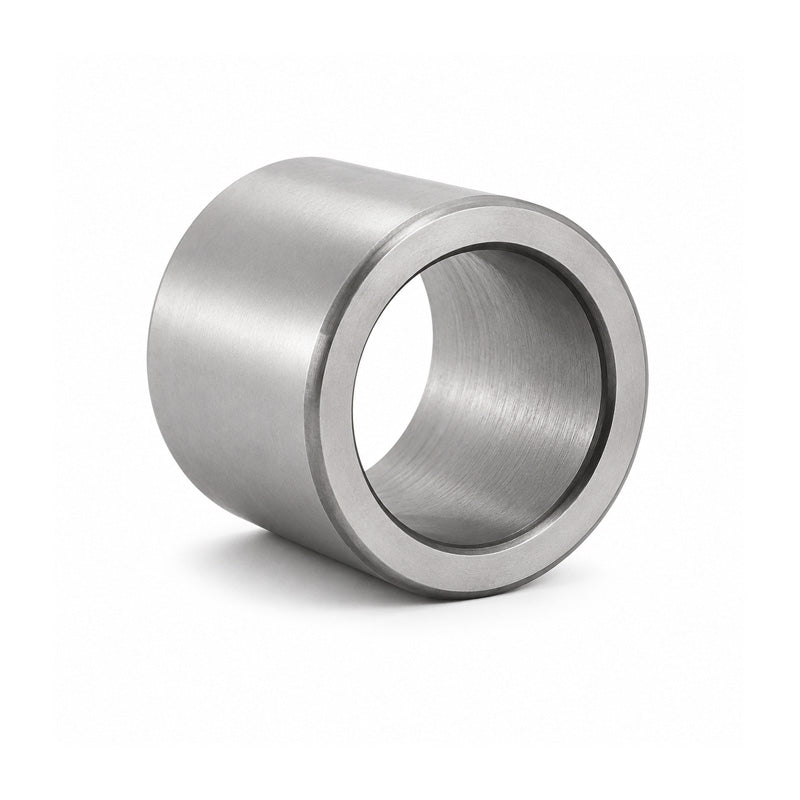

Major Brand Needle Roller Inner Ring LR10x13x12.5mm
Major Brand Needle Roller Inner Ring LR10x13x12.5mm
Regular price
$5.46
ex VAT
Regular price
Sale price
$5.46
ex VAT
In stock
Price Break
10+
$3.66
19+
$3.45
29+
$3.41
39+
$3.37
49+
$3.33
74+
$3.29
99+
$3.08
199+
$3.04
249+
$3.00
499+
$2.96
999+
$2.88
Quantity
Couldn't load pickup availability
Description
Description
LR Series Inner Rings : Made from carbon chromium steel and hardened. The bore and outside diameter are ground, however the sides are not ground and the edges are only smoothed. Used in applications where the larger width is required and run out tolerances are unimportant. LR series inner rings are economical and can be used in combination with amongst others the HK, BK and cage type needle roller bearings. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 13mm
- Width:
- 12.5mm
Technical
Technical
| d | 10mm |
|---|---|
| F | 13mm |
| B | 12.5mm |
| r1r2 | 0.3mm |
| Weight | 5.2 g |
