SKU: LR5205KDDU-INA

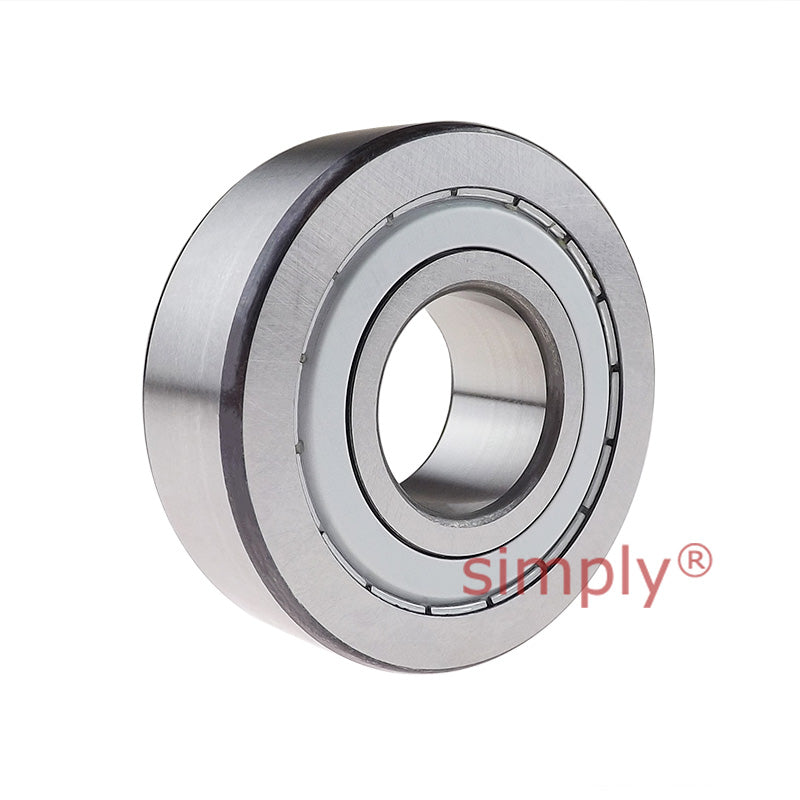

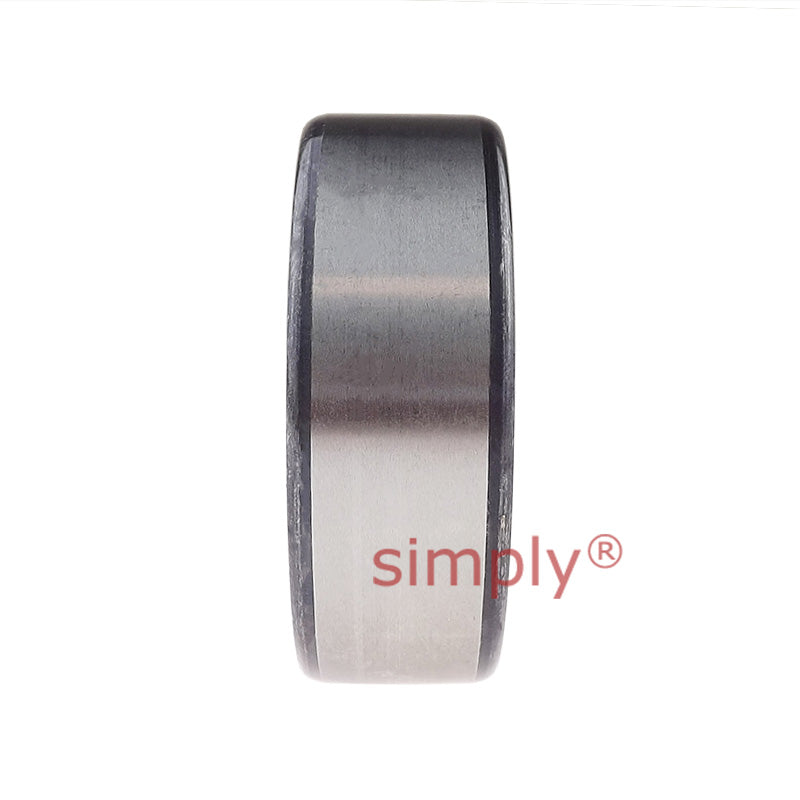

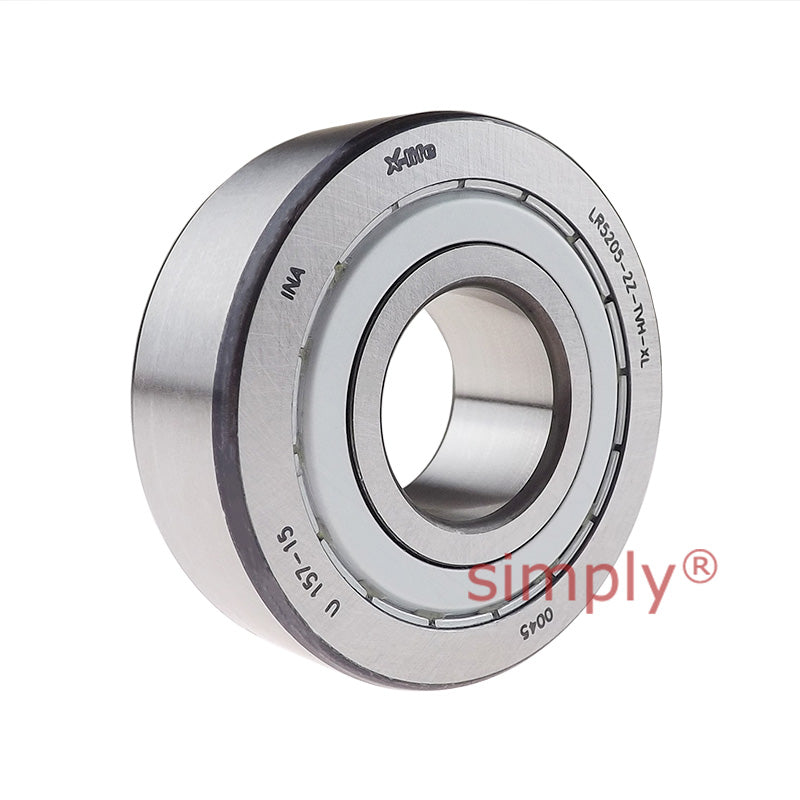

INA LR5205KDDU Double Row Metal Shielded Track Roller Bearing 25x62x20.6mm

INA LR5205KDDU Double Row Metal Shielded Track Roller Bearing 25x62x20.6mm
$82.47 ex VAT
$82.47 ex VAT
Sale Sold out

Equivalent to: LR5205-2Z-TVH-XL,LB3205B-2ZRSTNG,305805C-2Z

In stock

Price Break
10+ $55.24
19+ $52.14
29+ $51.52
39+ $50.90
49+ $50.28
74+ $49.66
99+ $46.55
199+ $45.93
249+ $45.31
499+ $44.69
999+ $43.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Metal Shielded Track Roller Bearing with a Spherical Outer:This range of self-retaining track roller bearings have a crowned outer raceaways with thicker walls. They are able to take on high radial forces and can support axial force in both directions. This KDDU range has metallic shields on both sides giving radial sealing action.

Brand / Quality:
INA - High Quality
Inside Diameter:
25mm
Outside Diameter:
62mm
Width:
20.6mm
Seals / Shields:
Metal Shielded
Technical
D (Outside Diameter) 62mm
d (Bore Diameter) 25mm
C (Width) 20.6mm
C<sub>r w</sub> (Basic dynamic load rating, radial) 19,700 N
C<sub>0r w</sub> (Basic static load rating, radial) 15,900 N
C<sub>ur w</sub> (Fatigue load limit, radial) 820 N
n<sub>D G</sub> (Speed on permanent grease lubrication) 6,500 1/min
F<sub>r per</sub> (Permissible dynamic load outer ring, radial) 15,900 N
d<sub>2</sub> (Diameter of thrust washer) 34.2mm
r<sub>min</sub> (Minimum chamfer dimension) 1 mm
R (Radius of outer ring outside profile) 500 mm
Weight 0.34 kg
