SKU: LR6000-2RSR-INA

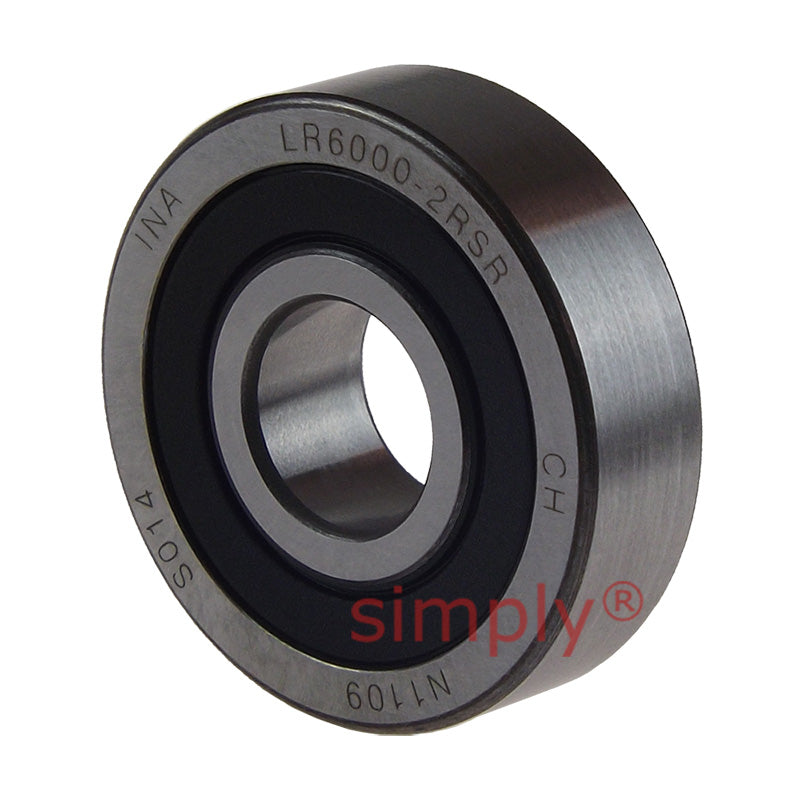

INA LR60002RSR Rubber Sealed Track Roller with Crowned Outer Race 10x28x8mm

Name: INA LR60002RSR Rubber Sealed Track Roller with Crowned Outer Race 10x28x8mm
Brand: INA
SKU: LR6000-2RSR-INA
Price: 28.90 USD
Availability: InStock

$28.90 ex VAT

Sale Sold out

Equivalent to: LR6000-2RSR LR6000-NPPU LR60002RS LR6000NPPU

In stock

Price Break

3+ $19.36

5+ $18.27

9+ $18.05

19+ $17.84

49+ $17.62

74+ $17.40

99+ $16.31

199+ $16.10

249+ $15.88

499+ $15.66

999+ $15.23

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 10mm
Outside Diameter:: 28mm
Width:: 8mm
Seals / Shields:: Rubber Sealed

Technical

d	10mm
D	28mm
C	8mm
d<sub>2</sub>	14.6mm
Crowning Radius (R)	500mm
r<sub>min</sub>	0.3mm
Mass (m)	0.02kg
Dynamic Load (C<sub>r w</sub>)	5000N
Static Load (C0<sub>r w</sub>)	2490N
Fatigue Limit Load (C<sub>ur w</sub>)	126N
Speed (n<sub>D G</sub>)	16000 1/min
