SKU: LR6001-NPPU-INA

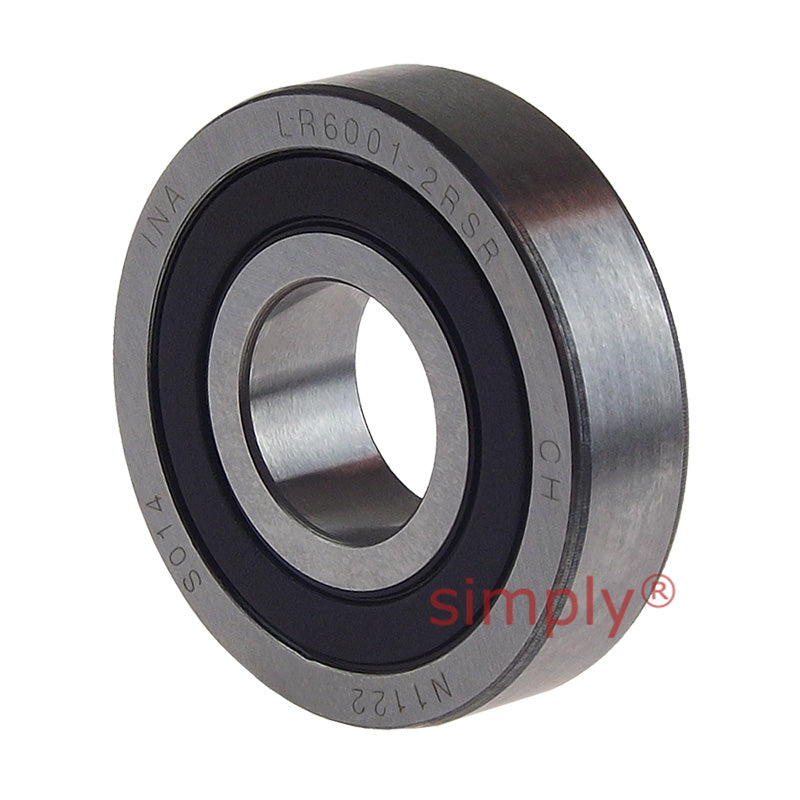

INA LR6001NPPU Rubber Sealed Track Roller with Crowned Outer Race 12x30x8mm

Name: INA LR6001NPPU Rubber Sealed Track Roller with Crowned Outer Race 12x30x8mm
Brand: INA
SKU: LR6001-NPPU-INA
Price: 27.92 USD
Availability: InStock

$27.92 ex VAT

Sale Sold out

Equivalent to: LR6001-2RSR LR6001-NPPU LR60012RS LR6001NPPU

In stock

Price Break

3+ $18.70

5+ $17.65

9+ $17.44

19+ $17.23

49+ $17.02

74+ $16.81

99+ $15.76

199+ $15.55

249+ $15.34

499+ $15.13

999+ $14.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 12mm
Outside Diameter:: 30mm
Width:: 8mm
Seals / Shields:: Rubber Sealed

Technical

d	12mm
D	30mm
C	8mm
d<sub>2</sub>	16.6mm
Crowning Radius (R)	500mm
r<sub>min</sub>	0.3mm
Mass (m)	0.03kg
Dynamic Load (C<sub>r w</sub>)	5300N
Static Load (C0<sub>r w</sub>)	2750N
Fatigue Limit Load (C<sub>ur w</sub>)	144N
Speed (n<sub>D G</sub>)	15000 1/min
