SKU: LR605-2RSR-INA

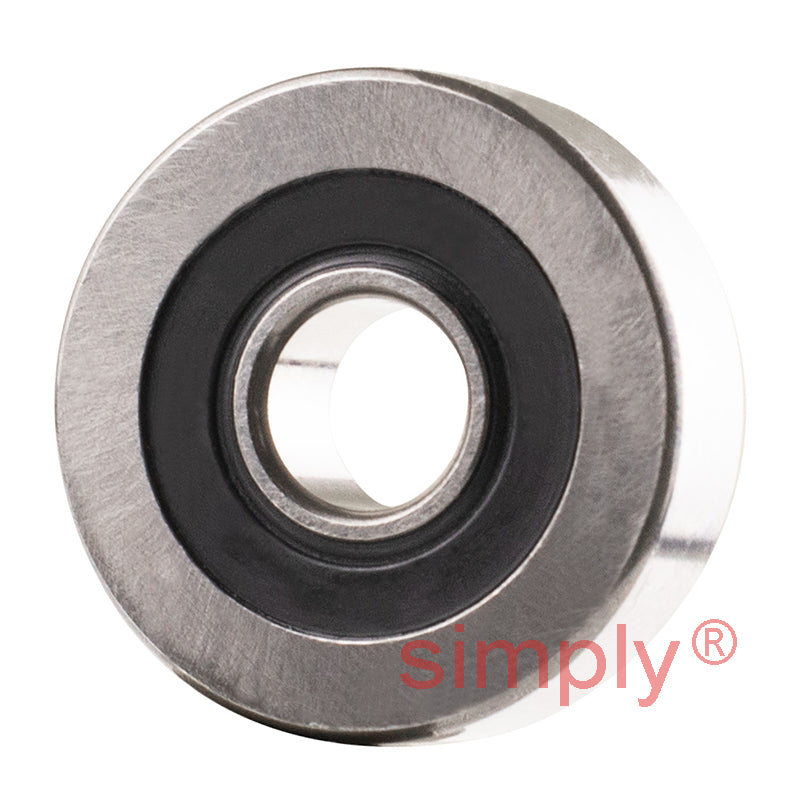

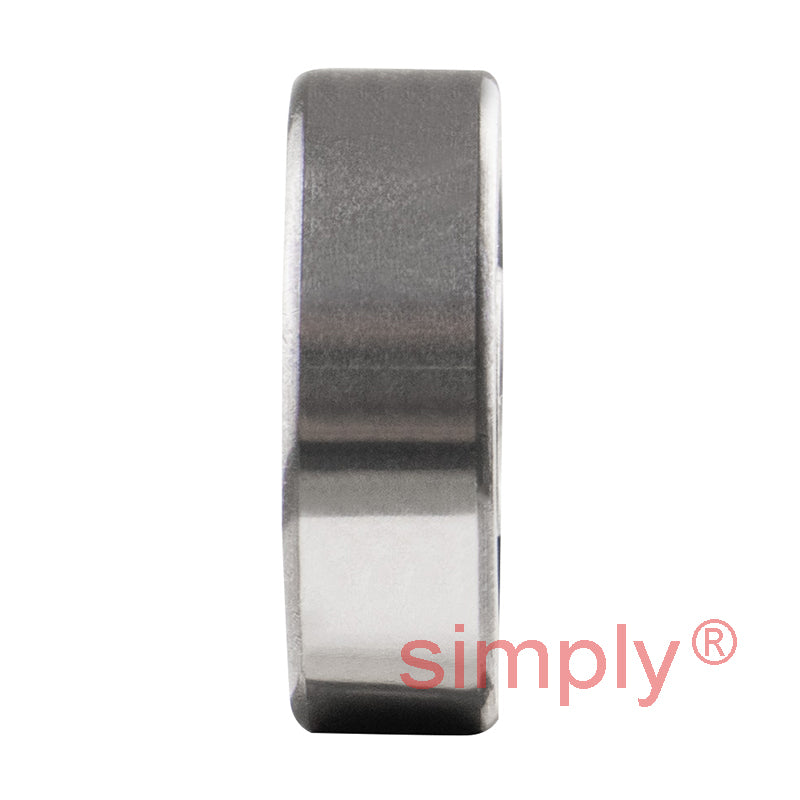

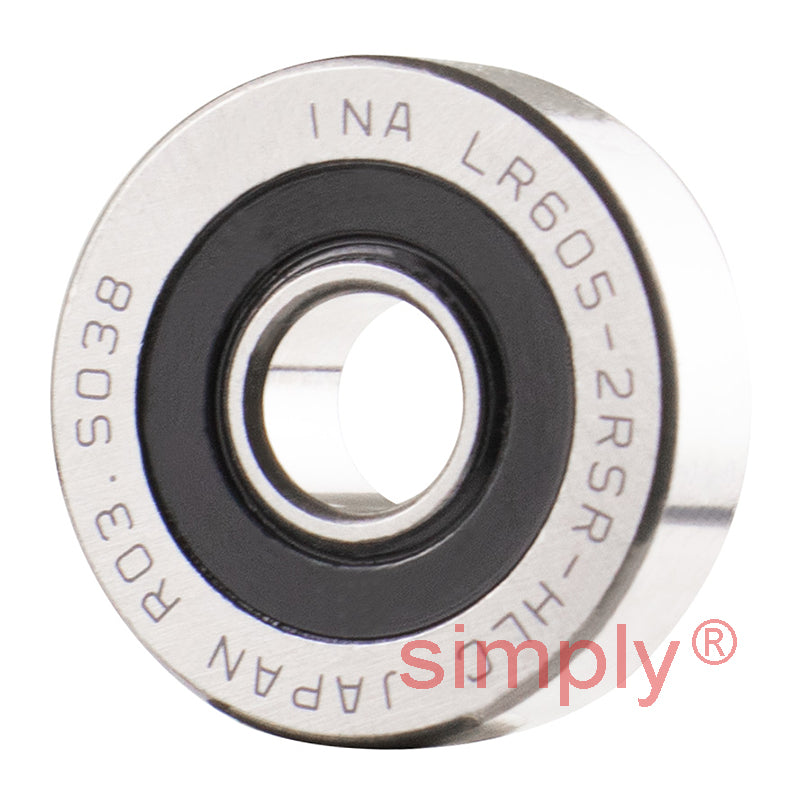

INA LR6052RSR Rubber Sealed Track Roller with Crowned Outer Race 5x16x5mm

INA LR6052RSR Rubber Sealed Track Roller with Crowned Outer Race 5x16x5mm
$28.90 ex VAT
$28.90 ex VAT
Sale Sold out

Equivalent to: LR605-2RSR LR605-NPPU LR6052RS LR605NPPU

In stock

Price Break
3+ $19.36
5+ $18.27
9+ $18.05
19+ $17.84
49+ $17.62
74+ $17.40
99+ $16.31
199+ $16.10
249+ $15.88
499+ $15.66
999+ $15.23

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
5mm
Outside Diameter:
16mm
Width:
5mm
Seals / Shields:
Rubber Sealed
Technical
d 5mm
D 16mm
C 5mm
d<sub>2</sub> 7.5mm
Crowning Radius (R) 500mm
r<sub>min</sub> 0.2mm
Mass (m) 0.01kg
Dynamic Load (C<sub>r w</sub>) 1290N
Static Load (C0<sub>r w</sub>) 510N
Fatigue Limit Load (C<sub>ur w</sub>) 25.5N
Speed (n<sub>D G</sub>) 23000 1/min
