SKU: LR606-NPPU-INA

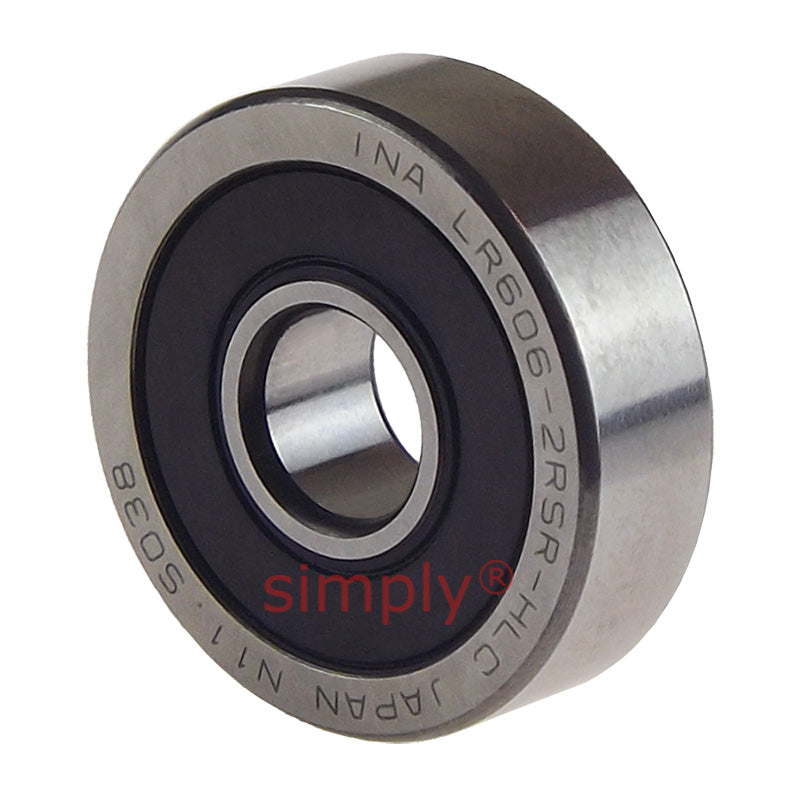

INA LR606NPPU Rubber Sealed Track Roller with Crowned Outer Race 6x19x6mm

Name: INA LR606NPPU Rubber Sealed Track Roller with Crowned Outer Race 6x19x6mm
Brand: INA
SKU: LR606-NPPU-INA
Price: 28.90 USD
Availability: InStock

$28.90 ex VAT

Sale Sold out

Equivalent to: LR606-2RSR LR606-NPPU LR6062RS LR606NPPU

In stock

Price Break

3+ $19.36

5+ $18.27

9+ $18.05

19+ $17.84

49+ $17.62

74+ $17.40

99+ $16.31

199+ $16.10

249+ $15.88

499+ $15.66

999+ $15.23

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 6mm
Outside Diameter:: 19mm
Width:: 6mm
Seals / Shields:: Rubber Sealed

Technical

d	6mm
D	19mm
C	6mm
d<sub>2</sub>	8.7mm
Crowning Radius (R)	500mm
r<sub>min</sub>	0.3mm
Mass (m)	0.01kg
Dynamic Load (C<sub>r w</sub>)	1940N
Static Load (C0<sub>r w</sub>)	790N
Fatigue Limit Load (C<sub>ur w</sub>)	39.5N
Speed (n<sub>D G</sub>)	22000 1/min
