SKU: LR608-2RSR-INA

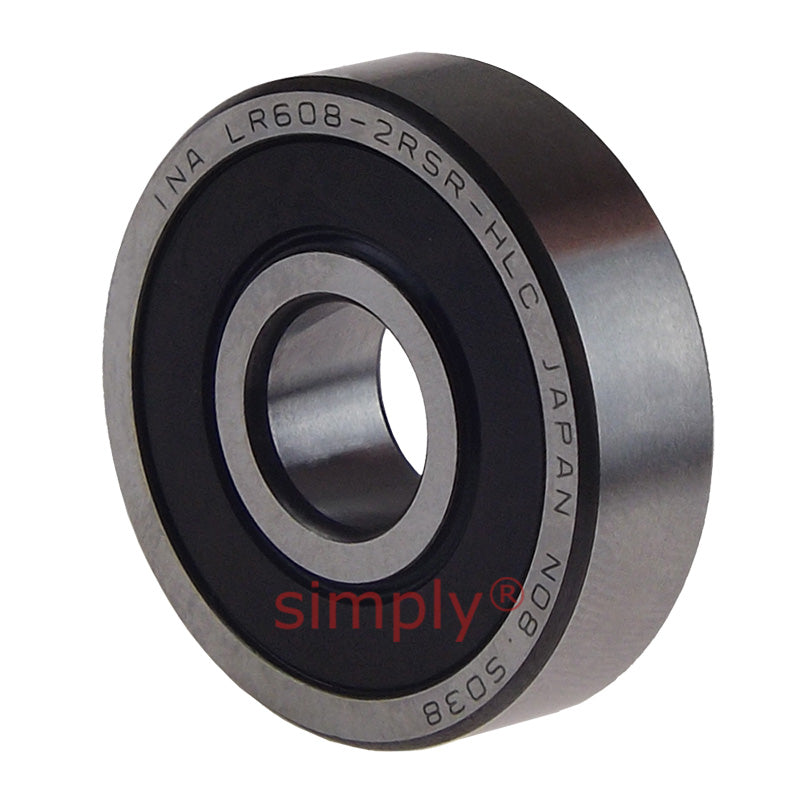

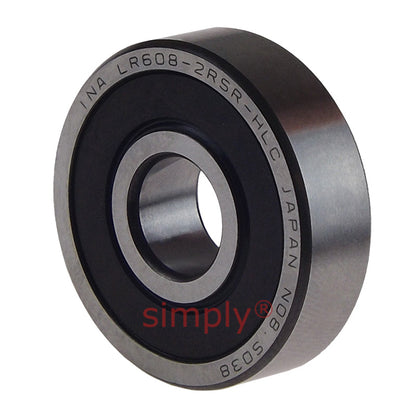

INA LR6082RSR Rubber Sealed Track Roller with Crowned Outer Race 8x24x7mm

Name: INA LR6082RSR Rubber Sealed Track Roller with Crowned Outer Race 8x24x7mm
Brand: INA
SKU: LR608-2RSR-INA
Price: 28.90 USD
Availability: InStock

$28.90 ex VAT

Sale Sold out

Equivalent to: LR608-2RSR LR608-NPPU LR6082RS LR608NPPU

In stock

Price Break

3+ $19.36

5+ $18.27

9+ $18.05

19+ $17.84

49+ $17.62

74+ $17.40

99+ $16.31

199+ $16.10

249+ $15.88

499+ $15.66

999+ $15.23

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 8mm
Outside Diameter:: 24mm
Width:: 7mm
Seals / Shields:: Rubber Sealed

Technical

d	8mm
D	24mm
C	7mm
d<sub>2</sub>	10mm
Crowning Radius (R)	500mm
r<sub>min</sub>	0.3mm
Mass (m)	0.02kg
Dynamic Load (C<sub>r w</sub>)	2950N
Static Load (C0<sub>r w</sub>)	1240N
Fatigue Limit Load (C<sub>ur w</sub>)	63N
Speed (n<sub>D G</sub>)	19000 1/min
