SKU: LS1730-MB

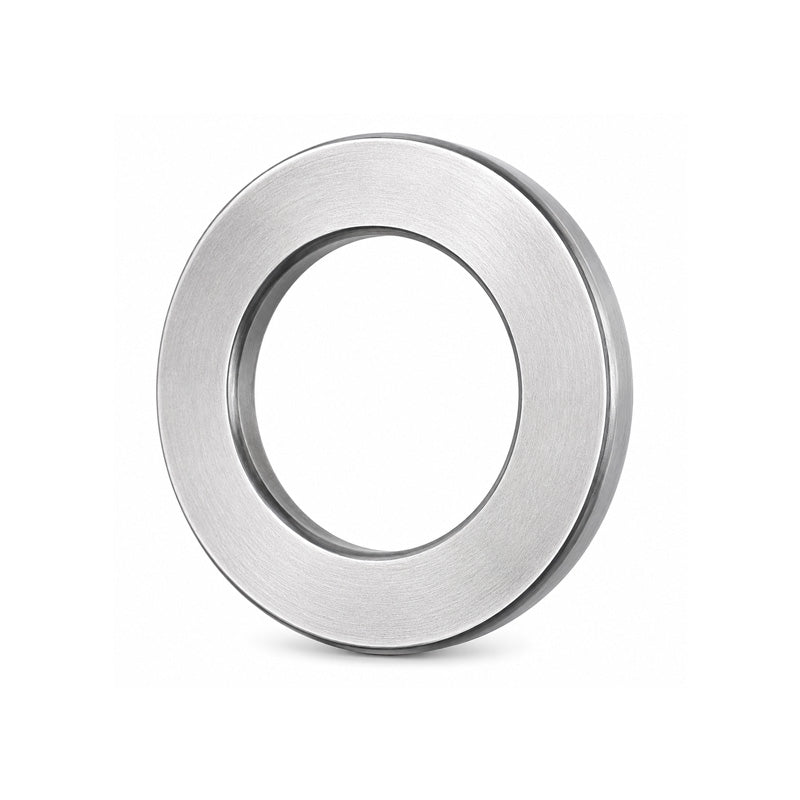

LS1730 Major Brand Raceway Washer Series LS 17x30x2.75mm
LS1730 Major Brand Raceway Washer Series LS 17x30x2.75mm
Regular price
$6.38
ex VAT
Regular price
Sale price
$6.38
ex VAT
In stock
Price Break
10+
$4.27
19+
$4.03
29+
$3.99
39+
$3.94
49+
$3.89
74+
$3.84
99+
$3.60
199+
$3.55
249+
$3.51
499+
$3.46
999+
$3.36
Quantity
Couldn't load pickup availability
Description
Description
|
LS Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished and are only 3mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 2.75mm
Technical
Technical
| d | 17mm |
|---|---|
| d1 | 30mm |
| D | 30mm |
| D1 | 18mm |
| B | 2.75mm |
| r1r2 | 0.3mm |
| Weight | 9 g |
