SKU: LS2035-EU

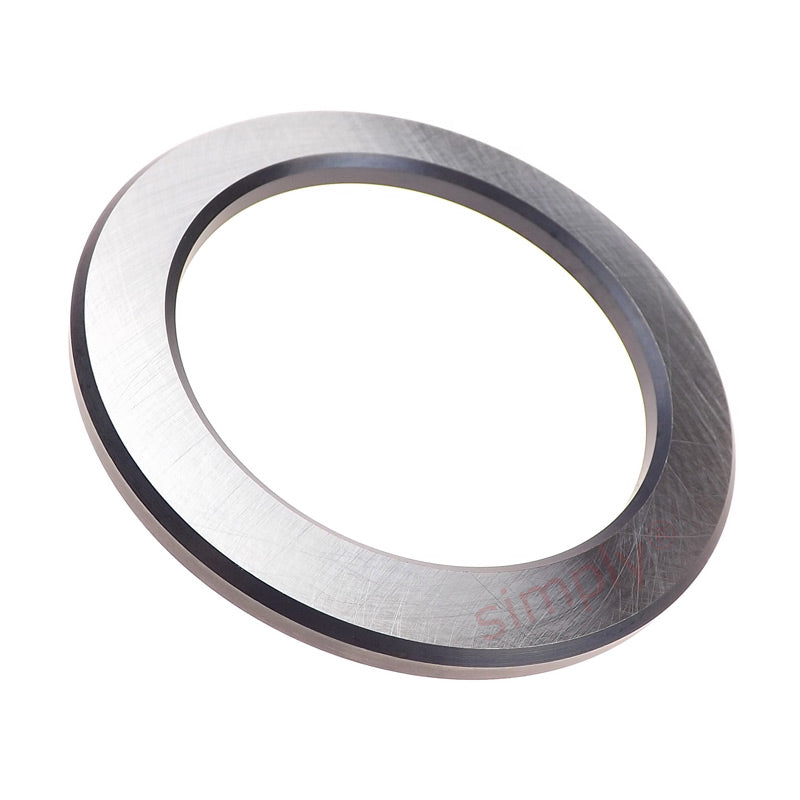

LS2035 Budget Raceway Washer Series LS 20x35x2.75mm
LS2035 Budget Raceway Washer Series LS 20x35x2.75mm
Regular price
$4.03
ex VAT
Regular price
Sale price
$4.03
ex VAT
In stock
Price Break
10+
$2.70
19+
$2.55
29+
$2.51
39+
$2.48
49+
$2.45
74+
$2.42
99+
$2.27
199+
$2.24
249+
$2.21
499+
$2.18
999+
$2.12
Quantity
Couldn't load pickup availability
Description
Description
|
Budget LS Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 35mm
- Width:
- 2.75mm
Technical
Technical
| d | 20mm |
|---|---|
| d1 | 35mm |
| D | 35mm |
| D1 | 21mm |
| B | 2.75mm |
| r1r2 | 0.3mm |
| Weight | 13 g |
