SKU: LS2542-EU

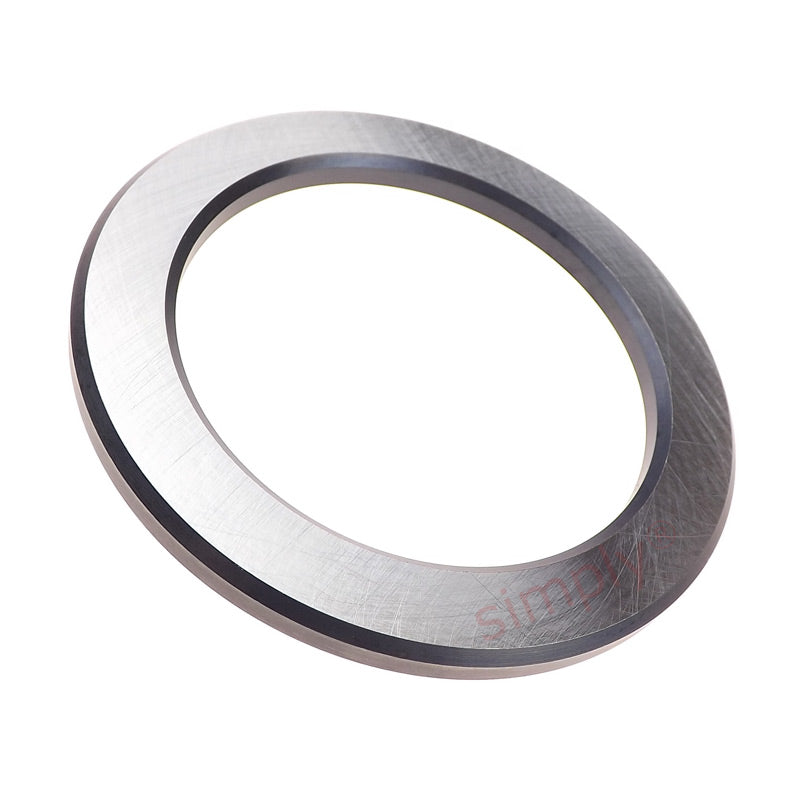

LS2542 Budget Raceway Washer Series LS 25x42x3mm
LS2542 Budget Raceway Washer Series LS 25x42x3mm
Regular price
$5.97
ex VAT
Regular price
Sale price
$5.97
ex VAT
In stock
Price Break
10+
$4.00
19+
$3.77
29+
$3.73
39+
$3.68
49+
$3.64
74+
$3.59
99+
$3.37
199+
$3.32
249+
$3.28
499+
$3.23
999+
$3.15
Quantity
Couldn't load pickup availability
Description
Description
|
Budget LS Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 3mm
Technical
Technical
| d | 25mm |
|---|---|
| d1 | 42mm |
| D | 42mm |
| D1 | 26mm |
| B | 3mm |
| r1r2 | 0.6mm |
| Weight | 19 g |
