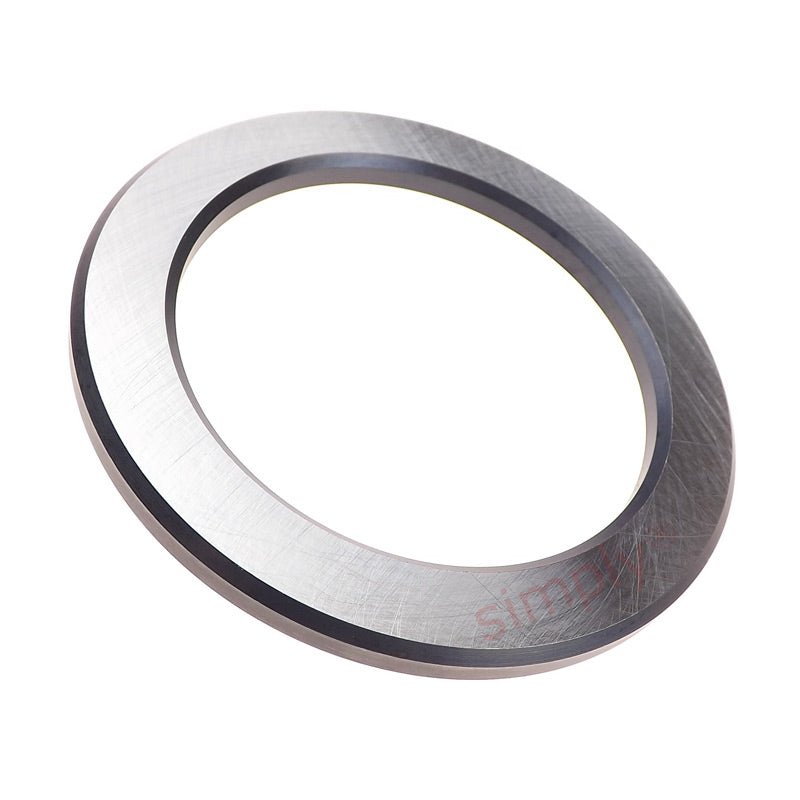

• LS75100 Budget Raceway Washer Series LS 75x100x5.75mm
1 1

SKU: LS75100-EU

LS75100 Budget Raceway Washer Series LS 75x100x5.75mm

LS75100 Budget Raceway Washer Series LS 75x100x5.75mm
$45.61 ex VAT
$45.61 ex VAT
Sale Sold out

In stock

Price Break
10+ $30.55
19+ $28.83
29+ $28.49
39+ $28.14
49+ $27.80
74+ $27.46
99+ $25.74
199+ $25.40
249+ $25.06
499+ $24.71
999+ $24.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Budget LS Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy.
Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
75mm
Outside Diameter:
100mm
Width:
5.75mm
Technical
d 75mm
d1 100mm
D 100mm
D1 77mm
B 5.75mm
r1r2 1mm
Weight 140 g
