SKU: LT3-3/8.MB

Branded LT3-3/8 Imperial Thrust Ball Bearing 3-3/8x4-15/16x1-1/4 inch

Name: Branded LT3-3/8 Imperial Thrust Ball Bearing 3-3/8x4-15/16x1-1/4 inch
Brand: Major Brand
SKU: LT3-3/8.MB
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

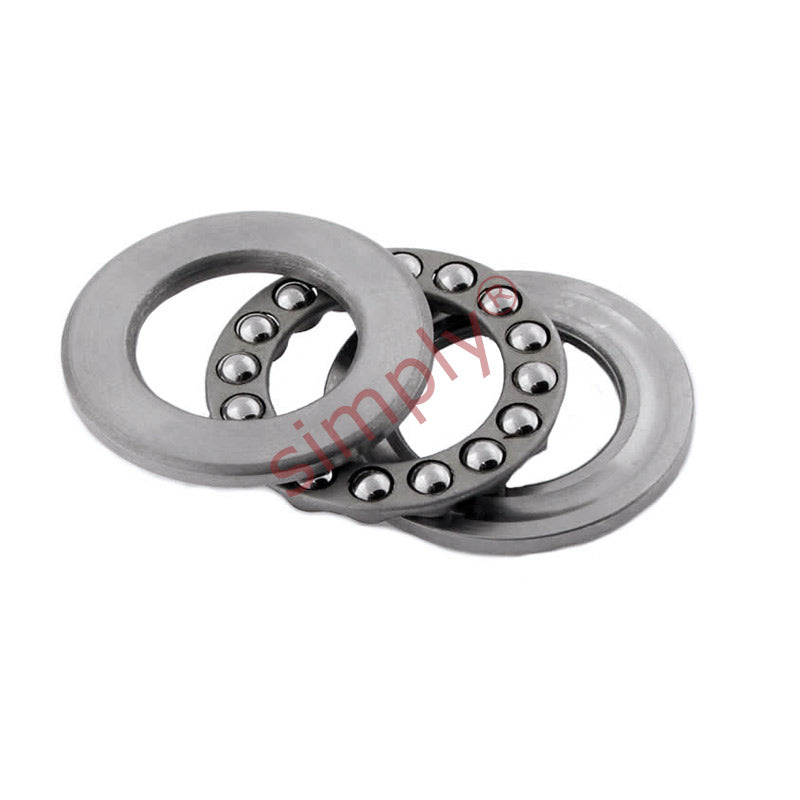

Imperial Ball Thrust Bearings: Consisting of two grooved washers and a ball race supported in a cage assembly. For ease of assembly they are separable into the three components permitting each part to be mounted individually, This style of bearing offers some element of shaft location, axial load and limited radial load.
Benefits: Cost effective, separable for ease of mounting, axial loading

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 85.73mm = 3.375 (3-3/8) inch
Outside Diameter:: 125.41mm = 4.937 (4-15/16) inch
Width:: 31.75mm = 1.25 (1-1/4) inch

Technical

Shaft Washer Bore(d)	3-3/8 inch
Housing Washer Bore(D1)	3-7/16 inch
Shaft Washer Outside Diameter(d1)	4-7/8 inch
Housing Washer Outside Diameter(D)	4-15/16 inch
Width	1-1/4 inch
