SKU: M-ASFB205D1-NTN

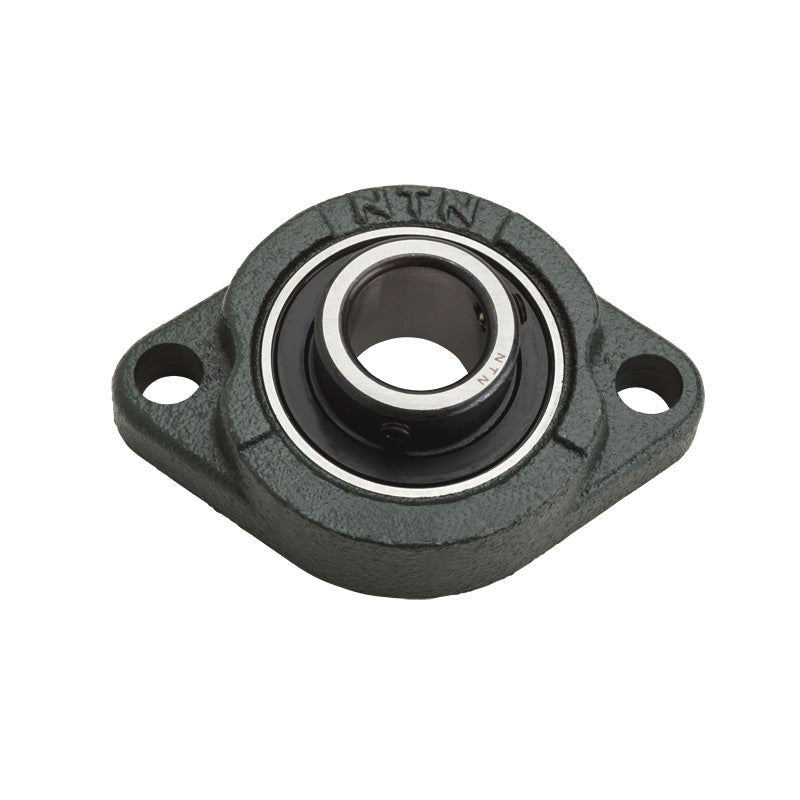

NTN M-ASFB205D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
NTN M-ASFB205D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
Regular price
$30.79
ex VAT
Regular price
Sale price
$30.79
ex VAT
In stock
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- ASFB
- Bolt Hole Centres:
- 76mm
Technical
Technical

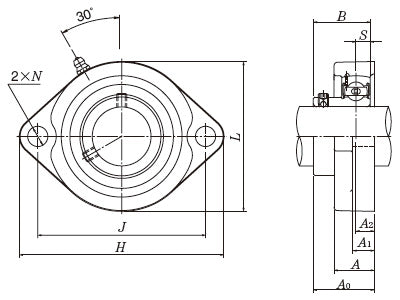

| Shaft diameter | 25mm |
|---|---|
| H | 95mm |
| J | 76mm |
| A<sub>2</sub> | 11mm |
| A<sub>1</sub> | 11mm |
| A | 20mm |
| N | 10mm |
| L | 64mm |
| A<sub>0</sub> | 30.5mm |
| B | 27mm |
| S | 7.5mm |
| Fixing bolt | M8 |
| Mass | 0.3 kg |
