• NTN M-ASPF207 Round 3 Bolt Pressed Steel Bearing Housing with 35mm Insert - Allow 2-3 Days
  • NTN
1 2

SKU: M-ASPF207-NTN

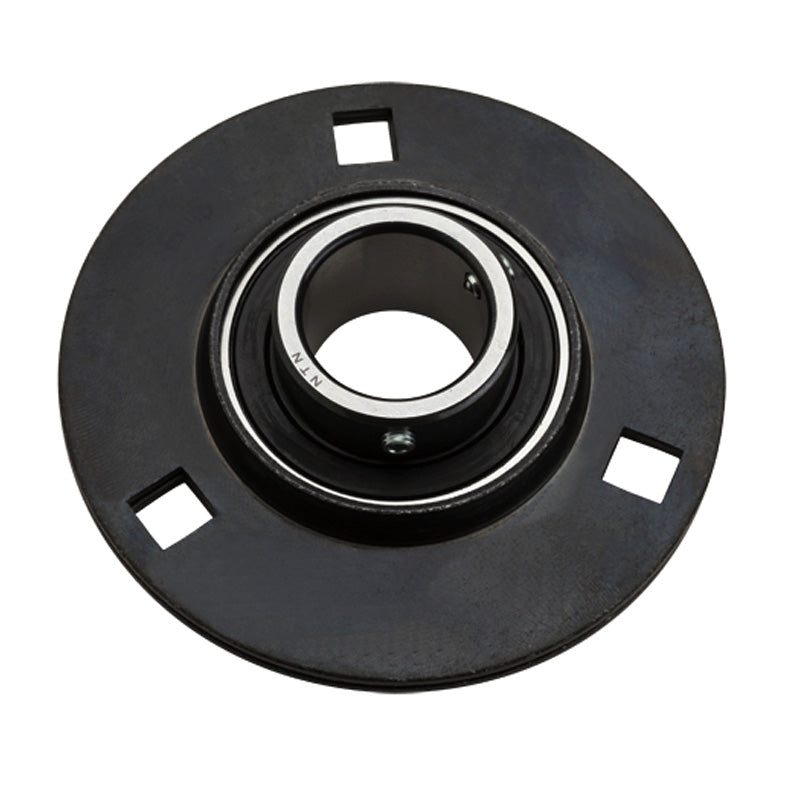

NTN M-ASPF207 Round 3 Bolt Pressed Steel Bearing Housing with 35mm Insert - Allow 2-3 Days

NTN M-ASPF207 Round 3 Bolt Pressed Steel Bearing Housing with 35mm Insert - Allow 2-3 Days
$30.35 ex VAT
$30.35 ex VAT
Sale Sold out

In stock

Price Break
3+ $20.33
4+ $19.19
9+ $18.96
19+ $18.73
49+ $18.50
99+ $18.27
499+ $17.13
999+ $16.90
1999+ $16.67
2999+ $16.44
4999+ $15.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Style:
ASPF
Pitch Circle Diameter:
100mm
Technical

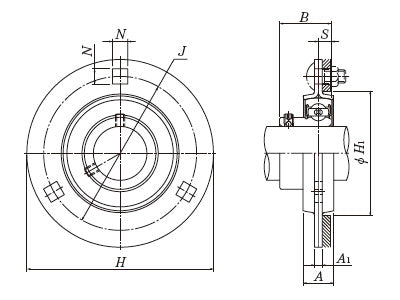

--- Dimensions
Shaft diameter 35mm
H 122mm
J 100mm
A<sub>1</sub> 5.2mm
N 11mm
A 20mm
B 34mm
S 8.5mm
H<sub>1</sub> min 81mm
Fixing bolt M10
--- Load rating
Max load recommended radial 6000 N
Max load recommended axial 3000 N
--- Unit information
Mass 0.6 kg
