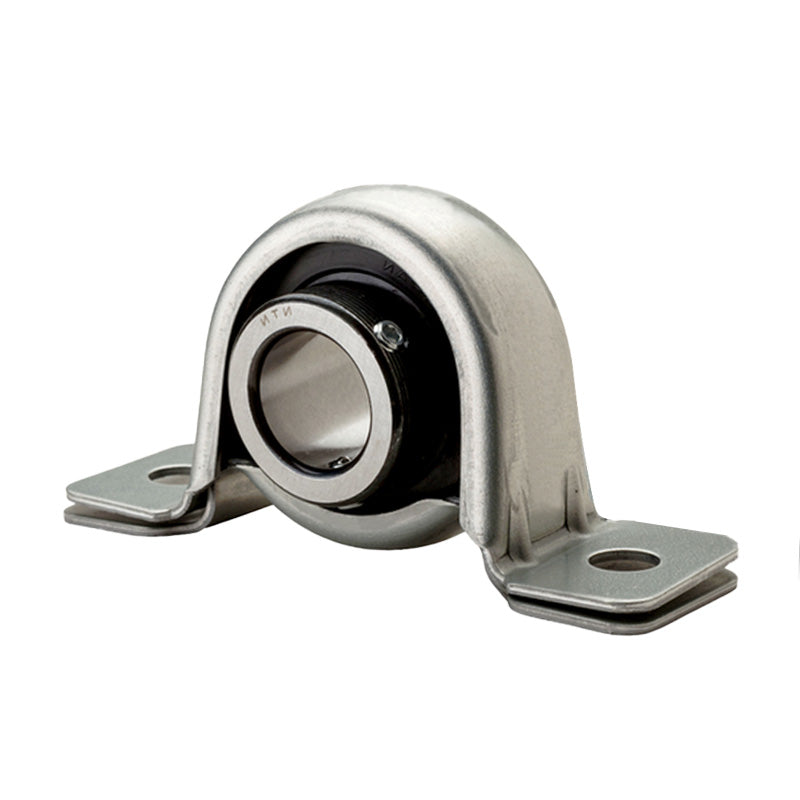

• NTN M-ASPP202 Metric Pressed Steel Two Bolt Plummer Block Housing with 15mm Insert - Allow 2-3 Days
  • NTN
1 2

SKU: M-ASPP202-NTN

NTN M-ASPP202 Metric Pressed Steel Two Bolt Plummer Block Housing with 15mm Insert - Allow 2-3 Days

NTN M-ASPP202 Metric Pressed Steel Two Bolt Plummer Block Housing with 15mm Insert - Allow 2-3 Days
$16.86 ex VAT
$16.86 ex VAT
Sale Sold out

In stock

Price Break
3+ $11.29
4+ $10.66
9+ $10.53
19+ $10.41
49+ $10.28
99+ $10.15
499+ $9.52
999+ $9.39
1999+ $9.26
2999+ $9.14
4999+ $8.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
15mm
Style:
ASPP
Bolt Hole Centres:
68mm
Technical
--- Dimensions
Shaft diameter 15mm
H 22.2mm
L 86mm
J 68mm
A 25mm
N 9.5mm
H<sub>1</sub> 3.2mm
H<sub>2</sub> 43.8mm
B 22mm
S 6mm
Fixing bolt M8
--- Load rating
Max load recommended radial 2000 N
Max load recommended axial 800 N
--- Unit information
Mass 0.2 kg
