SKU: M-ASPP204-NTN

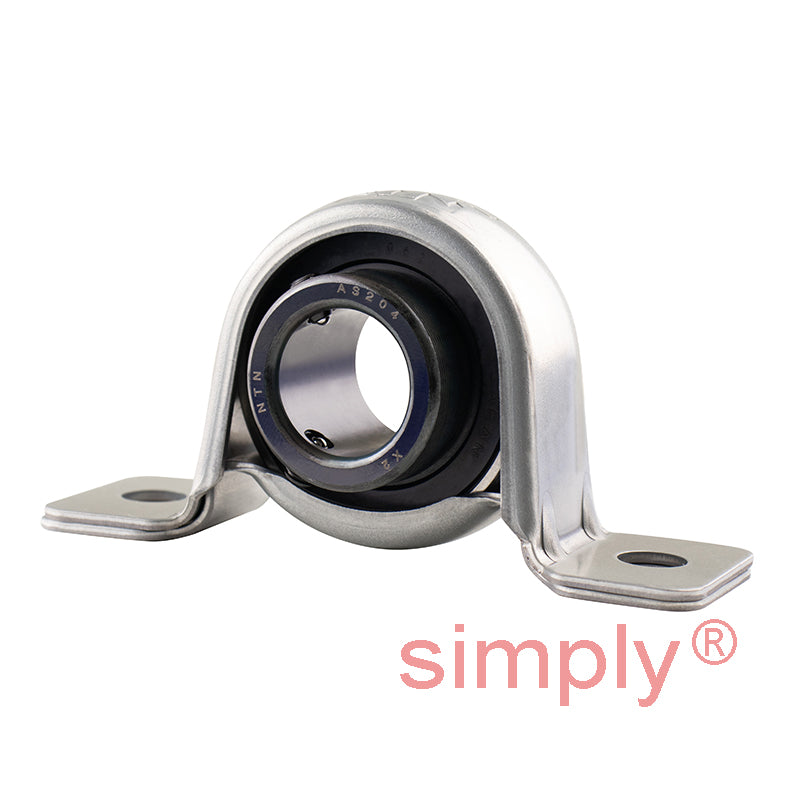

NTN M-ASPP204 Metric Pressed Steel Two Bolt Plummer Block Housing with 20mm Insert

NTN M-ASPP204 Metric Pressed Steel Two Bolt Plummer Block Housing with 20mm Insert
$20.22 ex VAT
$20.22 ex VAT
Sale Sold out

In stock

Price Break
3+ $13.55
4+ $12.78
9+ $12.63
19+ $12.48
49+ $12.33
99+ $12.18
499+ $11.42
999+ $11.26
1999+ $11.11
2999+ $10.96
4999+ $10.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
20mm
Style:
ASPP
Bolt Hole Centres:
76mm
Technical

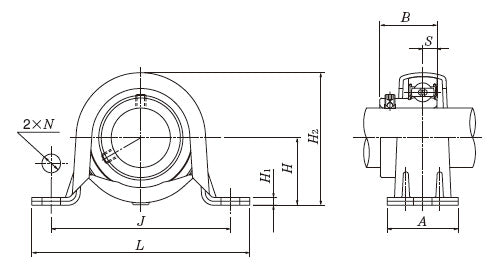

--- Dimensions
Shaft diameter 20mm
H 25.4mm
L 98mm
J 76mm
A 32mm
N 9.5mm
H<sub>1</sub> 3.2mm
H<sub>2</sub> 50.5mm
B 25mm
S 7mm
Fixing bolt M8
--- Load rating
Max load recommended radial 2500 N
Max load recommended axial 1000 N
--- Unit information
Mass 0.2 kg
