• NTN M-ASPP206 Metric Pressed Steel Two Bolt Plummer Block Housing with 30mm Insert - Allow 2-3 Days
  • NTN
1 2

SKU: M-ASPP206-NTN

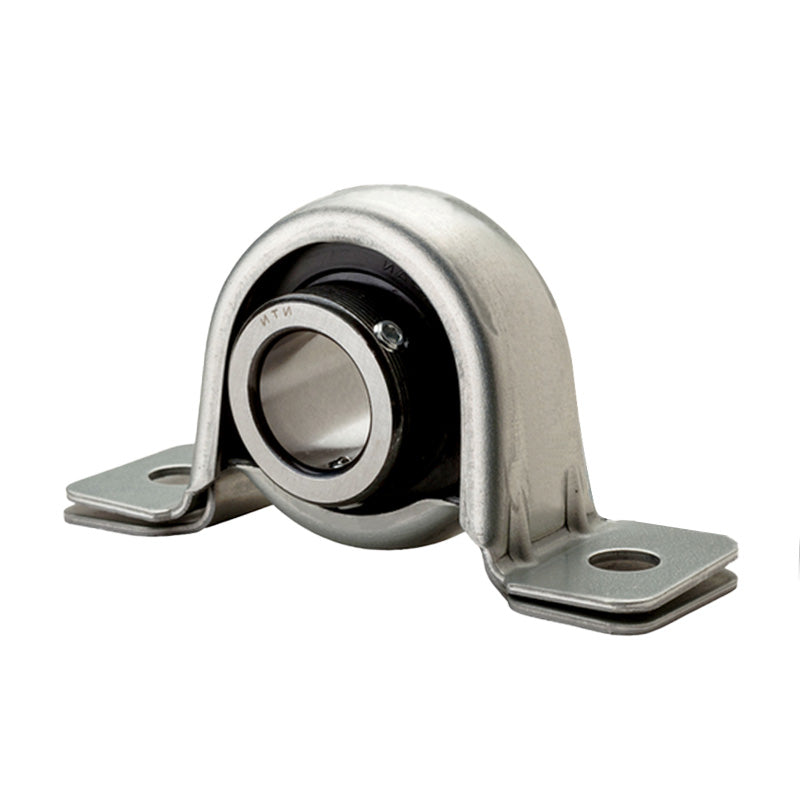

NTN M-ASPP206 Metric Pressed Steel Two Bolt Plummer Block Housing with 30mm Insert - Allow 2-3 Days

NTN M-ASPP206 Metric Pressed Steel Two Bolt Plummer Block Housing with 30mm Insert - Allow 2-3 Days
$26.97 ex VAT
$26.97 ex VAT
Sale Sold out

In stock

Price Break
3+ $18.07
4+ $17.05
9+ $16.85
19+ $16.65
49+ $16.44
99+ $16.24
499+ $15.23
999+ $15.02
1999+ $14.82
2999+ $14.62
4999+ $14.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
30mm
Style:
ASPP
Bolt Hole Centres:
95mm
Technical
--- Dimensions
Shaft diameter 30mm
H 33.3mm
L 117mm
J 95mm
A 38mm
N 11.5mm
H<sub>1</sub> 4mm
H<sub>2</sub> 66.3mm
B 29mm
S 8mm
Fixing bolt M10
--- Load rating
Max load recommended radial 4000 N
Max load recommended axial 1600 N
--- Unit information
Mass 0.4 kg
