SKU: M-CM-UCT217D1-NTN

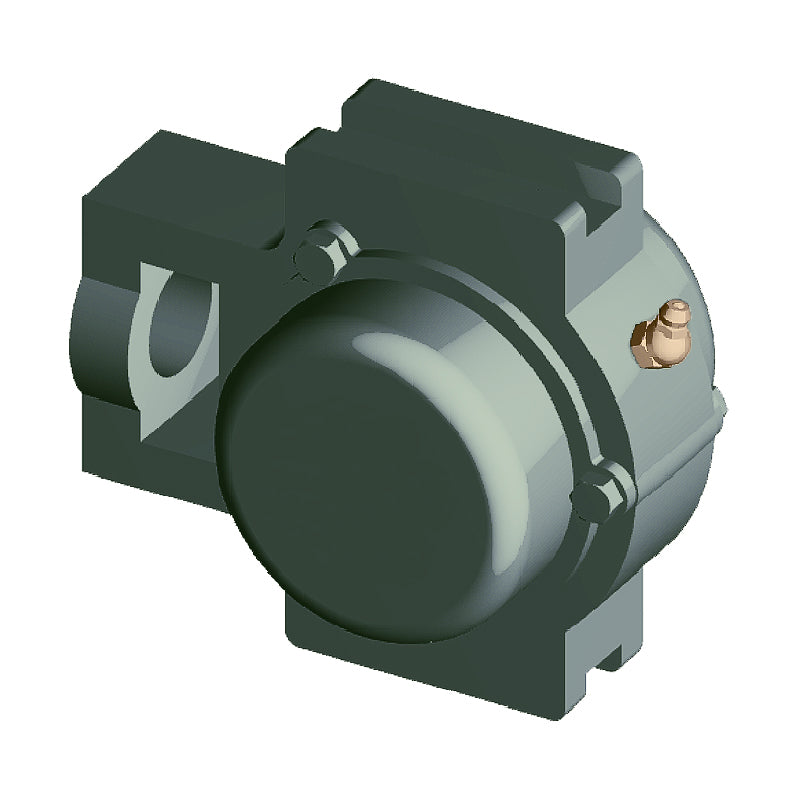

NTN M-CM-UCT217D1 Metric Cast Iron Take Up Unit with 85mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN M-CM-UCT217D1 Metric Cast Iron Take Up Unit with 85mm Bore Bearing Unit with Cast Iron Cover - Closed Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 85mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 85mm |
| N<sub>1</sub> | 38mm |
| L<sub>2</sub> | 31mm |
| H<sub>2</sub> | 124mm |
| N<sub>2</sub> | 73mm |
| N | 48mm |
| L<sub>3</sub> | 157mm |
| A<sub>1</sub> | 30mm |
| H<sub>1</sub> | 173mm |
| H | 198mm |
| L | 260mm |
| A<sub>2</sub> | 54mm |
| A | 73mm |
| r | 98mm |
| L<sub>1</sub> | 162mm |
| B | 85.7mm |
| S | 34.1mm |
| t<sub>2</sub> | 19mm |
| L<sub>4</sub> | 260mm |
| A<sub>5</sub> | 155mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 92 kN |
| Static load C<sub>0r</sub> | 64 kN |
| Fatigue load limit C<sub>u</sub> | 4.6 kN |
| --- | Unit information |
| Mass | 14 kg |
