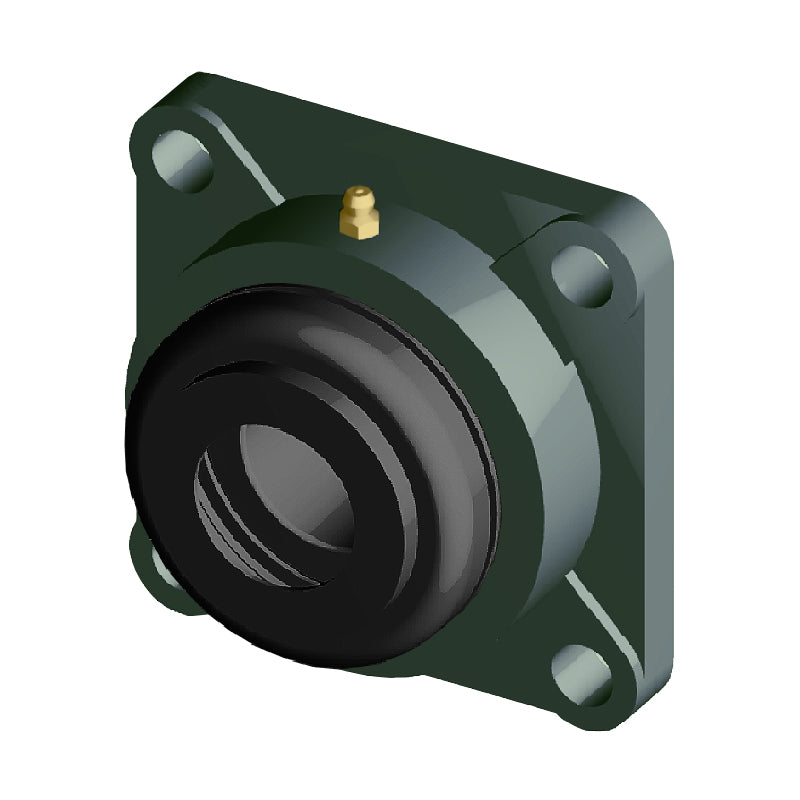

• NTN M-S-UCF204D1 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: M-S-UCF204D1-NTN

NTN M-S-UCF204D1 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN M-S-UCF204D1 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$41.21 ex VAT
$41.21 ex VAT
Sale Sold out

In stock

Price Break
3+ $30.70
4+ $29.46
9+ $28.84
19+ $27.91
49+ $27.29
99+ $25.74
499+ $21.71
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
20mm
Style:
UCF
Bolt Hole Centres:
64mm
Technical
--- Dimensions
Shaft diameter 20mm
L 86mm
J 64mm
A<sub>2</sub> 15mm
A<sub>1</sub> 11mm
A 25.5mm
N 12mm
B 31mm
S 12.7mm
A<sub>4</sub> 40.5mm
Fixing bolt M10
--- Load rating
Dynamic load C<sub>r</sub> 14.2 kN
Static load C<sub>0r</sub> 6.65 kN
Fatigue load limit C<sub>u</sub> 0.505 kN
--- Unit information
Mass 0.6 kg
