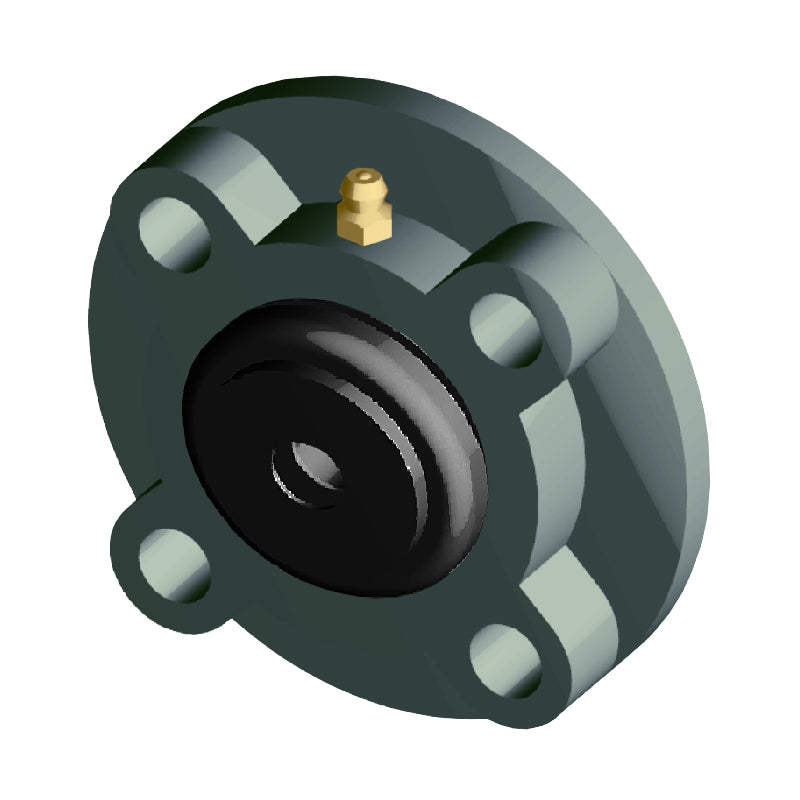

• NTN M-S-UCFC208D1 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: M-S-UCFC208D1-NTN

NTN M-S-UCFC208D1 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN M-S-UCFC208D1 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$73.63 ex VAT
$73.63 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.86
4+ $52.64
9+ $51.53
19+ $49.87
49+ $48.76
99+ $45.99
499+ $38.79
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Style:
UCFC
Pitch Circle Diameter:
84.9mm
Technical
--- Dimensions
Shaft diameter 40mm
L 145mm
J 120mm
(J<sub>1</sub>) 84.9mm
A<sub>2</sub> 11mm
N 14mm
A<sub>3</sub> 10mm
A<sub>1</sub> 26mm
A 36mm
H<sub>3</sub> 100mm
B 49.2mm
S 19mm
A<sub>4</sub> 62mm
Fixing bolt M12
--- Load rating
Dynamic load C<sub>r</sub> 32.5 kN
Static load C<sub>0r</sub> 17.8 kN
Fatigue load limit C<sub>u</sub> 1.24 kN
--- Unit information
Mass 2.1 kg
