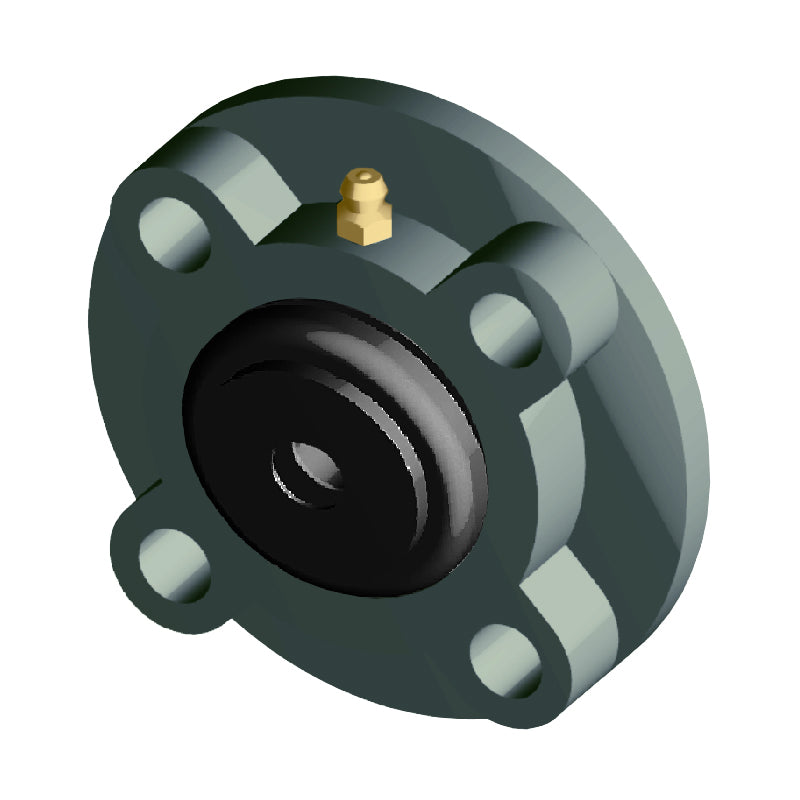

• NTN M-S-UCFC210D1 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
  • NTN
1 2

SKU: M-S-UCFC210D1-NTN

NTN M-S-UCFC210D1 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN M-S-UCFC210D1 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$74.98 ex VAT
$74.98 ex VAT
Sale Sold out

In stock

Price Break
3+ $50.22
4+ $47.40
9+ $46.84
19+ $46.27
49+ $45.71
99+ $45.14
499+ $42.32
999+ $41.76
1999+ $41.19
2999+ $40.63
4999+ $39.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
50mm
Style:
UCFC
Pitch Circle Diameter:
97.6mm
Technical
--- Dimensions
Shaft diameter 50mm
L 165mm
J 138mm
(J<sub>1</sub>) 97.6mm
A<sub>2</sub> 10mm
N 16mm
A<sub>3</sub> 12mm
A<sub>1</sub> 28mm
A 40mm
H<sub>3</sub> 110mm
B 51.6mm
S 19mm
A<sub>4</sub> 65.5mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 39 kN
Static load C<sub>0r</sub> 23.2 kN
Fatigue load limit C<sub>u</sub> 1.82 kN
--- Unit information
Mass 3.1 kg
