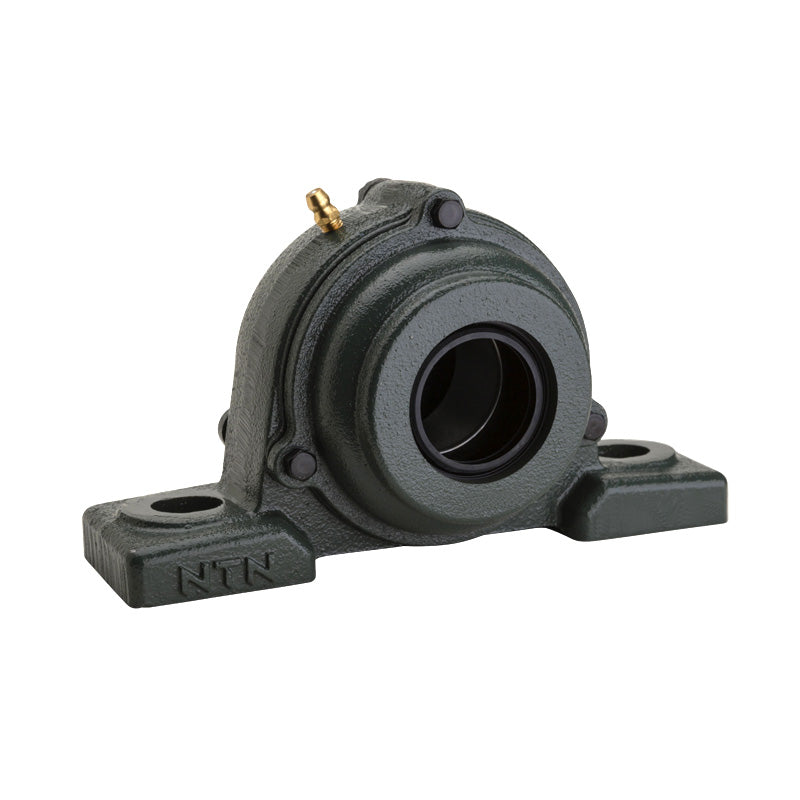

• NTN M-S-UCP206D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: M-S-UCP206D1-NTN

NTN M-S-UCP206D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN M-S-UCP206D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$58.86 ex VAT
$58.86 ex VAT
Sale Sold out

In stock

Price Break
3+ $43.85
4+ $42.08
9+ $41.19
19+ $39.86
49+ $38.98
99+ $36.76
499+ $31.00
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
30mm
Style:
UCP
Bolt Hole Centres:
121mm
Technical
--- Dimensions
Shaft diameter 30mm
H 42.9mm
L 165mm
J 121mm
A 48mm
N 17mm
N<sub>1</sub> 20mm
H<sub>1</sub> 17mm
H<sub>2</sub> 83mm
L<sub>1</sub> 54mm
B 38.1mm
S 15.9mm
A<sub>4</sub> 62mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 21.6 kN
Static load C<sub>0r</sub> 11.3 kN
Fatigue load limit C<sub>u</sub> 0.795 kN
--- Unit information
Mass 1.4 kg
