SKU: M-SM-UCT202-009D1-NTN

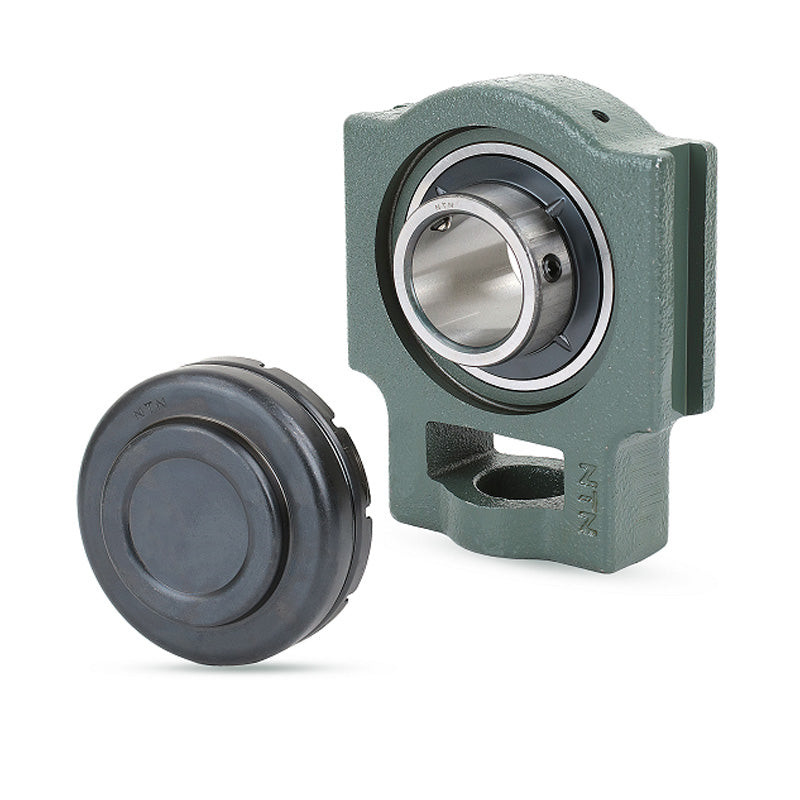

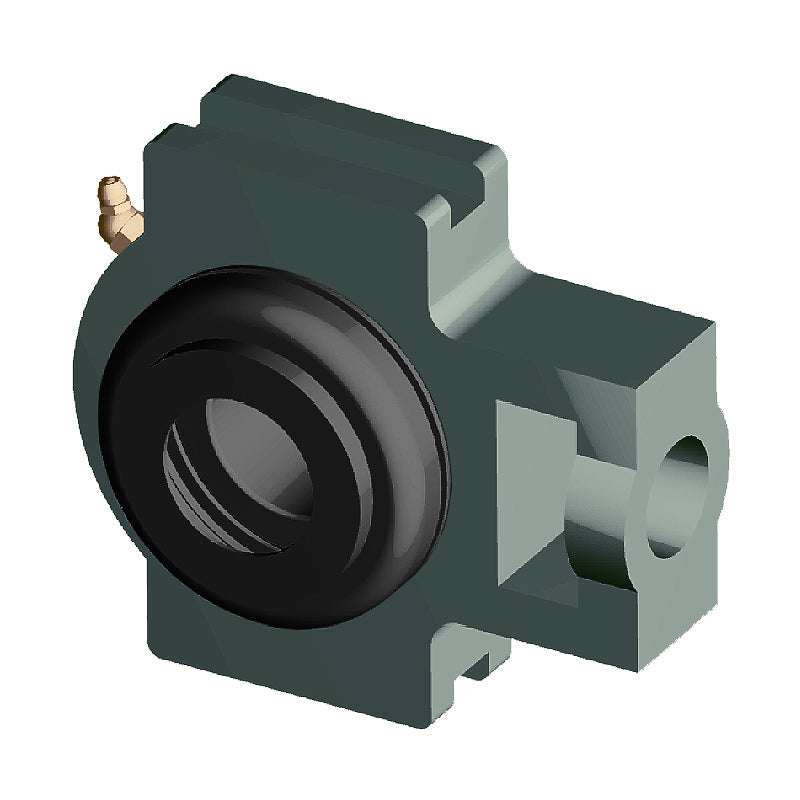

NTN M-SM-UCT202-009D1 Imperial Cast Iron Take Up Unit with 9/16 inch Bore Bearing Unit with Steel Plate Cover - Closed Version - Allow 2-3 Days
NTN M-SM-UCT202-009D1 Imperial Cast Iron Take Up Unit with 9/16 inch Bore Bearing Unit with Steel Plate Cover - Closed Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 14.29mm = 0.563 (9/16) inch
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 9/16 inch |
| N<sub>1</sub> | 5/8 inch |
| L<sub>2</sub> | 15/32 inch |
| H<sub>2</sub> | 2 inch |
| N<sub>2</sub> | 1-1/4 inch |
| N | 3/4 inch |
| L<sub>3</sub> | 2 inch |
| A<sub>1</sub> | 0.472 inch |
| H<sub>1</sub> | 2-63/64 inch |
| H | 3-1/2 inch |
| L | 3-11/16 inch |
| A<sub>2</sub> | 13/16 inch |
| A | 1-1/4 inch |
| r | 1-5/16 inch |
| L<sub>1</sub> | 2-13/32 inch |
| B | 1.2205 inch |
| S | 0.5 inch |
| t<sub>1</sub> | 13/64 inch |
| A<sub>4</sub> | 2 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 14.2 kN |
| Static load C<sub>0r</sub> | 6.65 kN |
| Fatigue load limit C<sub>u</sub> | 0.505 kN |
| --- | Unit information |
| Mass | 1.8 lbs |
