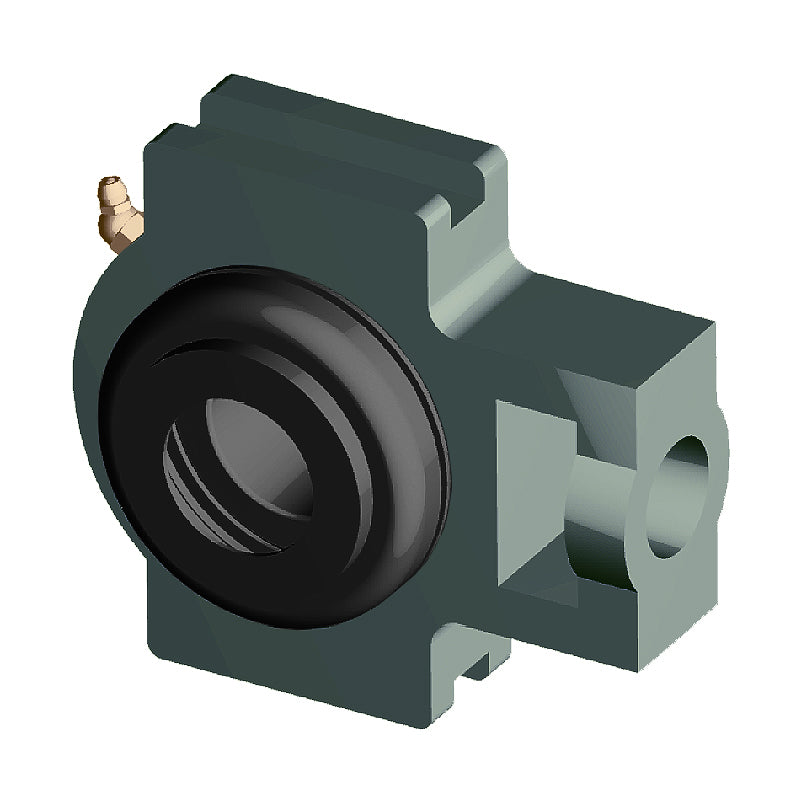

NTN M-SM-UCT210D1 Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit with Steel Plate Cover - Closed Version - Allow 2-3 Days
NTN M-SM-UCT210D1 Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit with Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
$103.10
ex VAT
Regular price
Sale price
$103.10
ex VAT
In stock
Price Break
3+
$76.80
4+
$73.70
9+
$72.15
19+
$69.82
49+
$68.27
99+
$64.39
499+
$54.31
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|

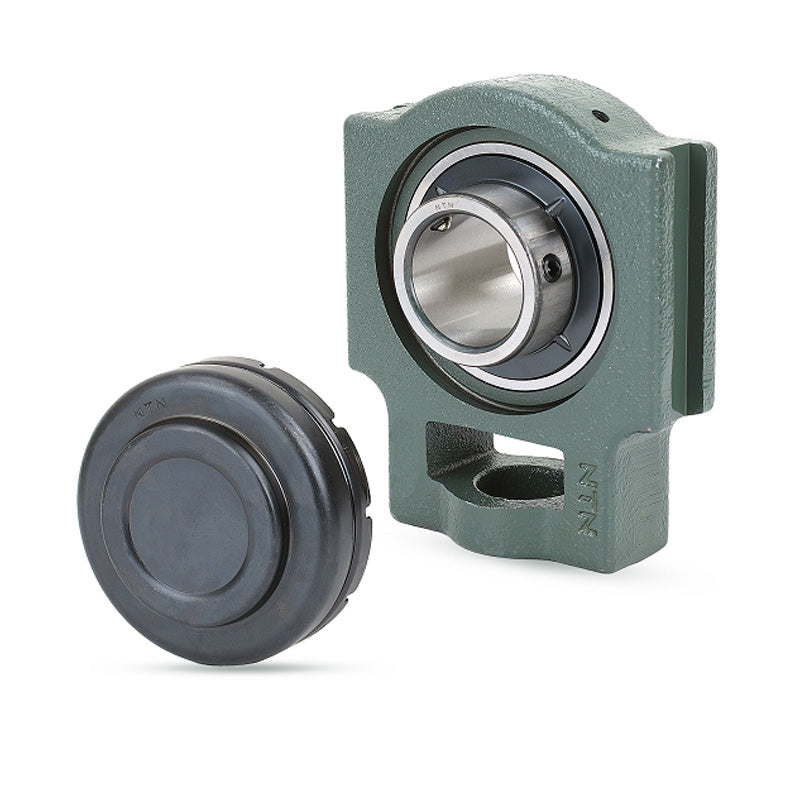

UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| N<sub>1</sub> | 19mm |
| L<sub>2</sub> | 18mm |
| H<sub>2</sub> | 83mm |
| N<sub>2</sub> | 49mm |
| N | 29mm |
| L<sub>3</sub> | 86mm |
| A<sub>1</sub> | 16mm |
| H<sub>1</sub> | 102mm |
| H | 117mm |
| L | 151mm |
| A<sub>2</sub> | 37mm |
| A | 49mm |
| r | 59mm |
| L<sub>1</sub> | 92mm |
| B | 51.6mm |
| S | 19mm |
| t<sub>1</sub> | 8mm |
| A<sub>4</sub> | 87mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 39 kN |
| Static load C<sub>0r</sub> | 23.2 kN |
| Fatigue load limit C<sub>u</sub> | 1.82 kN |
| --- | Unit information |
| Mass | 2.7 kg |
