SKU: M-SM-UCT213D1-NTN

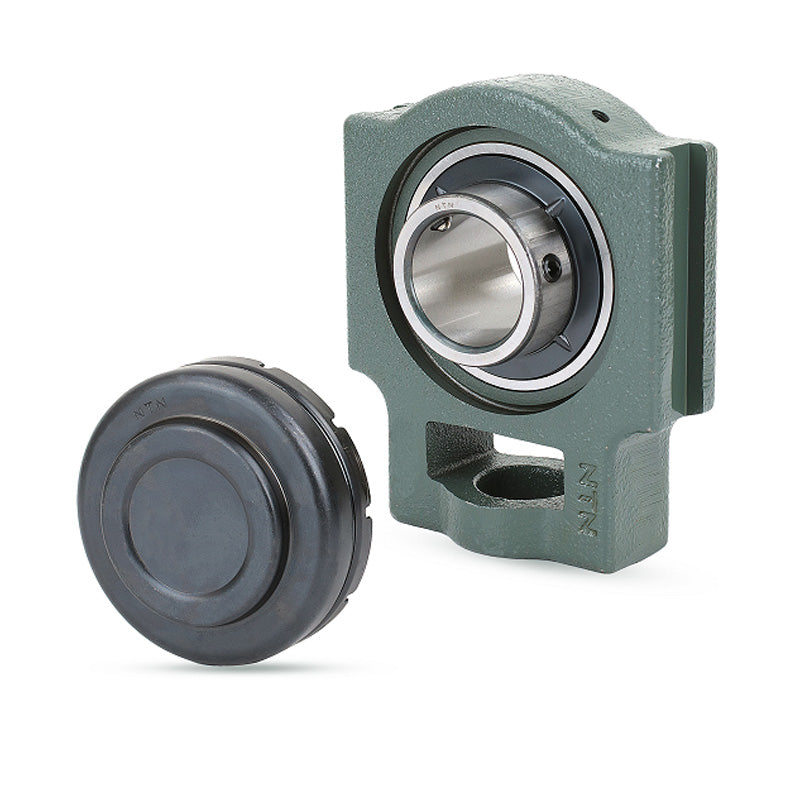

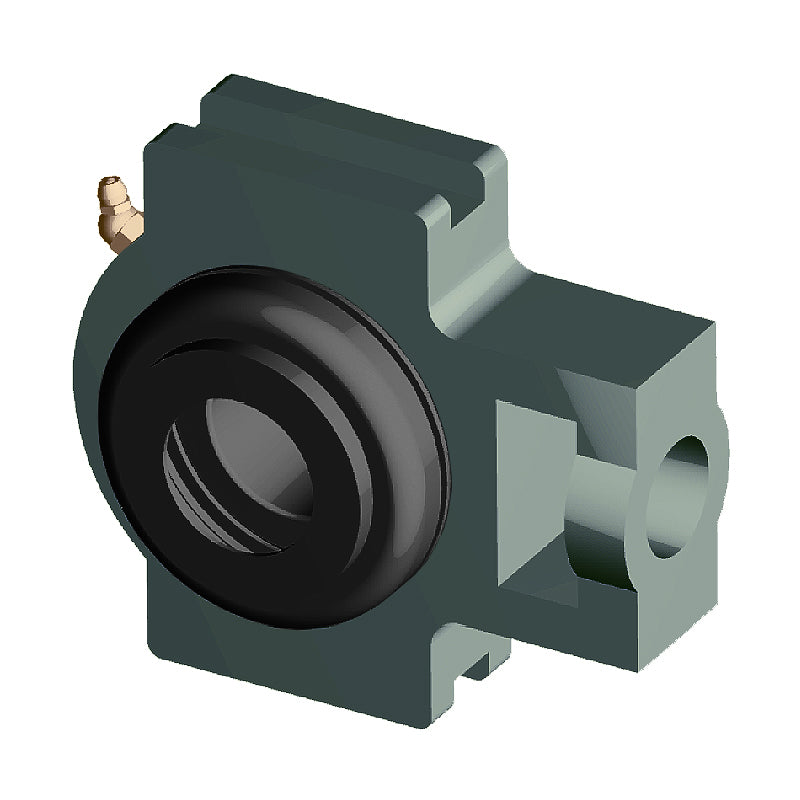

NTN M-SM-UCT213D1 Metric Cast Iron Take Up Unit with 65mm Bore Bearing Unit with Steel Plate Cover - Closed Version - Allow 2-3 Days
NTN M-SM-UCT213D1 Metric Cast Iron Take Up Unit with 65mm Bore Bearing Unit with Steel Plate Cover - Closed Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 65mm |
| N<sub>1</sub> | 32mm |
| L<sub>2</sub> | 23mm |
| H<sub>2</sub> | 111mm |
| N<sub>2</sub> | 70mm |
| N | 41mm |
| L<sub>3</sub> | 121mm |
| A<sub>1</sub> | 26mm |
| H<sub>1</sub> | 151mm |
| H | 167mm |
| L | 224mm |
| A<sub>2</sub> | 44mm |
| A | 70mm |
| r | 87mm |
| L<sub>1</sub> | 137mm |
| B | 65.1mm |
| S | 25.4mm |
| t<sub>1</sub> | 11mm |
| A<sub>4</sub> | 107mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 63.5 kN |
| Static load C<sub>0r</sub> | 40 kN |
| Fatigue load limit C<sub>u</sub> | 3.15 kN |
| --- | Unit information |
| Mass | 7.3 kg |
