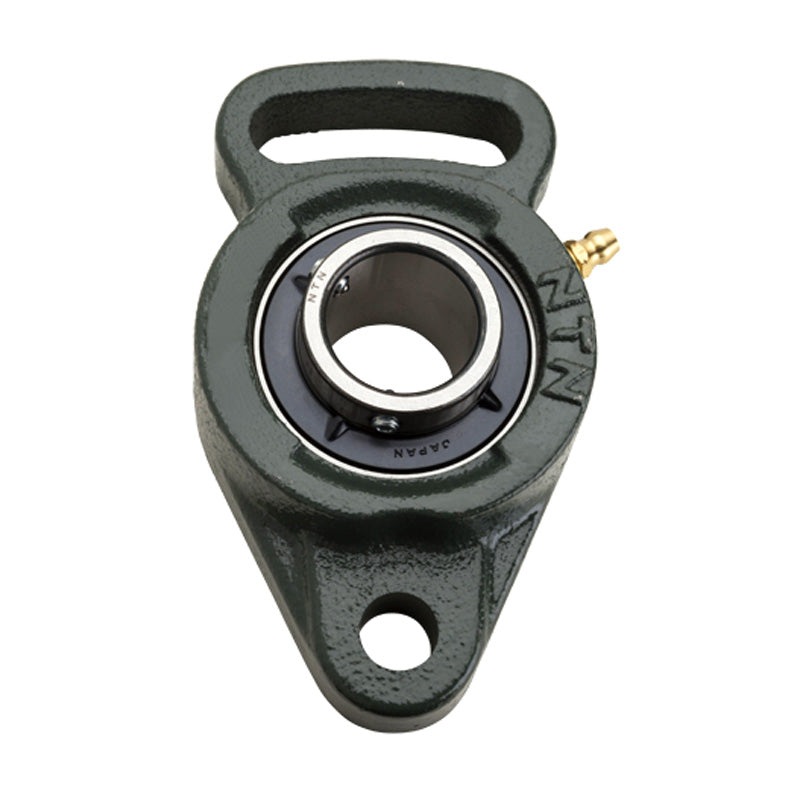

NTN M-UCFA207D1 Metric Cast Iron Adjustable Flange Unit with 35mm Insert - Allow 2-3 Days
NTN M-UCFA207D1 Metric Cast Iron Adjustable Flange Unit with 35mm Insert - Allow 2-3 Days
Regular price
$58.90
ex VAT
Regular price
Sale price
$58.90
ex VAT
In stock
Price Break
3+
$43.88
4+
$42.10
9+
$41.22
19+
$39.89
49+
$39.00
99+
$36.79
499+
$31.02
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCFA
- Bolt Hole Centres:
- 128mm
Technical
Technical
| Shaft diameter | 35mm |
|---|---|
| H | 155mm |
| J | 128mm |
| A<sub>2</sub> | 20mm |
| A<sub>1</sub> | 16mm |
| A | 34mm |
| N | 15mm |
| N<sub>1</sub> | 60mm |
| L | 90mm |
| L<sub>1</sub> | 75mm |
| A<sub>0</sub> | 45.4mm |
| B | 42.9mm |
| S | 17.5mm |
| Fixing bolt | M12 |
| Mass | 1.2 kg |
