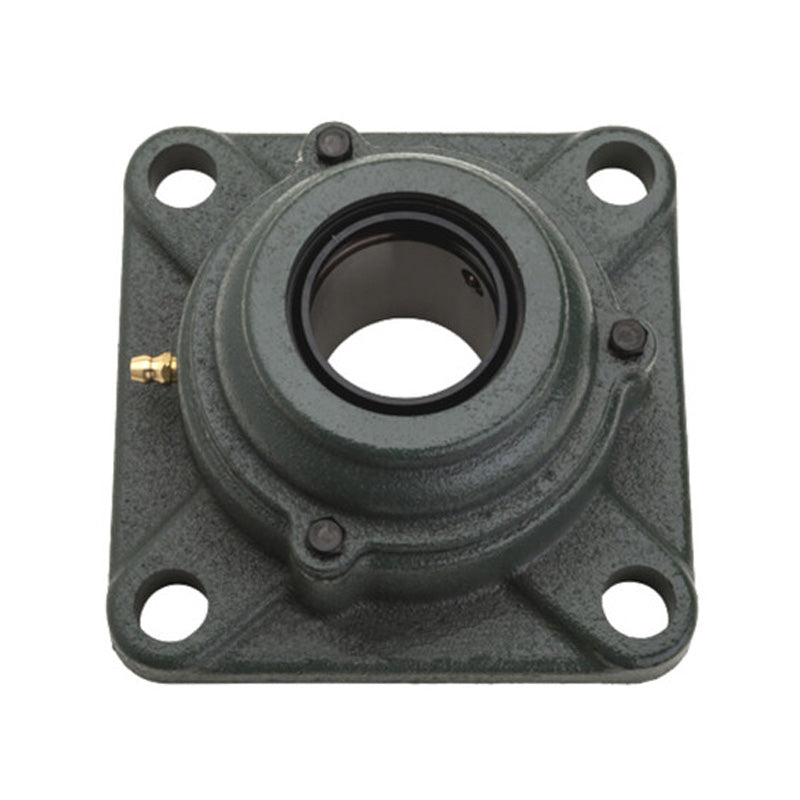

• NTN M-UCFC207D1 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert - Allow 2-3 Days
  • NTN
1 2

SKU: M-UCFC207D1-NTN

NTN M-UCFC207D1 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert - Allow 2-3 Days

NTN M-UCFC207D1 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert - Allow 2-3 Days
$50.13 ex VAT
$50.13 ex VAT
Sale Sold out

In stock

Price Break
3+ $33.58
4+ $31.69
9+ $31.32
19+ $30.94
49+ $30.56
99+ $30.18
499+ $28.30
999+ $27.92
1999+ $27.54
2999+ $27.17
4999+ $26.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Style:
UCFC
Pitch Circle Diameter:
77.8mm
Technical
--- Dimensions
Shaft diameter 35mm
L 135mm
J 110mm
(J<sub>1</sub>) 77.8mm
A<sub>2</sub> 11mm
N 14mm
A<sub>3</sub> 8mm
A<sub>1</sub> 26mm
A 34mm
H<sub>3</sub> 90mm
A<sub>0</sub> 44.4mm
B 42.9mm
S 17.5mm
Fixing bolt M12
--- Load rating
Dynamic load C<sub>r</sub> 28.4 kN
Static load C<sub>0r</sub> 15.3 kN
Fatigue load limit C<sub>u</sub> 1.09 kN
--- Unit information
Mass 1.6 kg
