SKU: M-UCFH206D1-NTN

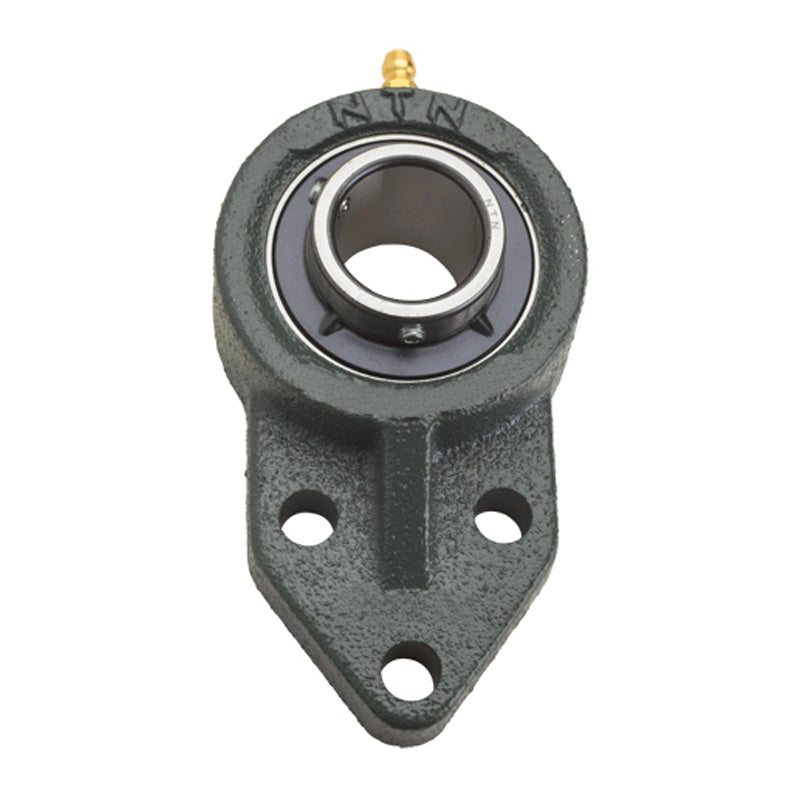

NTN M-UCFH206D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 30mm Bore - Allow 2-3 Days
NTN M-UCFH206D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 30mm Bore - Allow 2-3 Days
Regular price
$44.56
ex VAT
Regular price
Sale price
$44.56
ex VAT
In stock
Price Break
3+
$29.85
4+
$28.17
9+
$27.84
19+
$27.50
49+
$27.17
99+
$26.83
499+
$25.16
999+
$24.82
1999+
$24.48
2999+
$24.15
4999+
$23.48
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCFH
- Bolt Hole Centres:
- 40mm
Technical
Technical

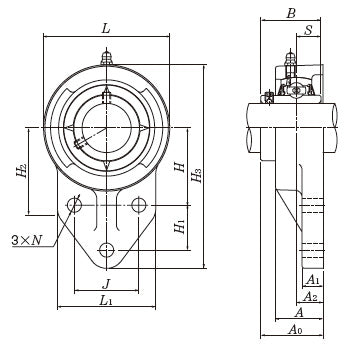

| Shaft diameter | 30mm |
|---|---|
| H<sub>3</sub> | 130mm |
| J | 40mm |
| A<sub>2</sub> | 18mm |
| A<sub>1</sub> | 13mm |
| A | 31mm |
| N | 10mm |
| H | 50mm |
| H<sub>1</sub> | 29mm |
| L<sub>1</sub> | 65mm |
| H<sub>2</sub> | 55mm |
| L | 78mm |
| A<sub>0</sub> | 40.2mm |
| B | 38.1mm |
| S | 15.9mm |
| Fixing bolt | M8 |
| Mass | 0.9 kg |
