SKU: M-UCHB205-100D1-NTN

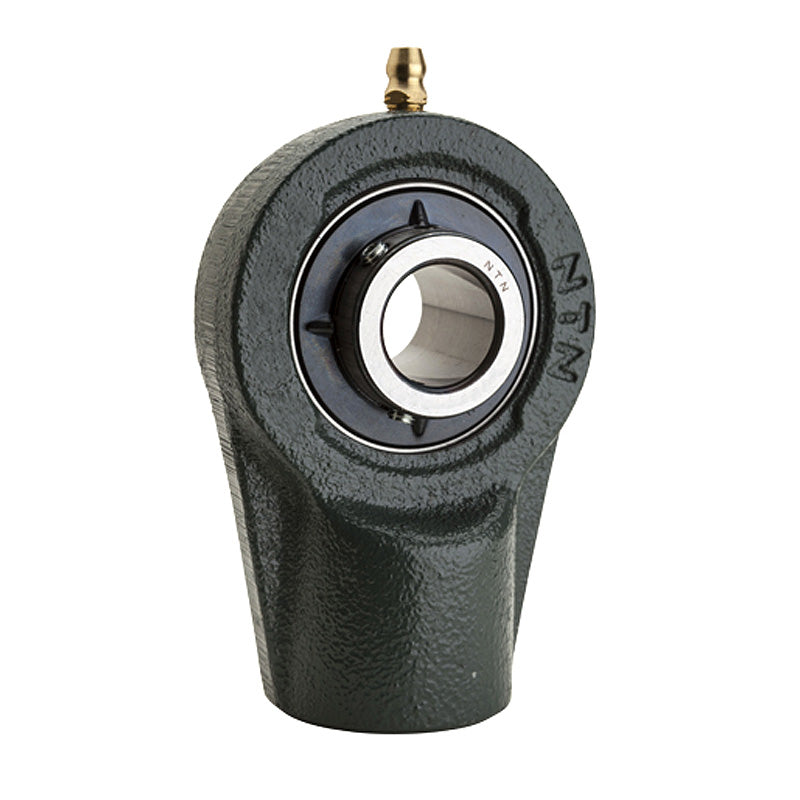

NTN M-UCHB205-100D1 Imperial Cast Iron Hanger Bearing Unit with 1 inch Bore Insert - Allow 2-3 Days
NTN M-UCHB205-100D1 Imperial Cast Iron Hanger Bearing Unit with 1 inch Bore Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCHB200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25.4mm = 1 Inch
- Style:
- UCHB
Technical
Technical
| Shaft diameter | 1 inch |
|---|---|
| L | 3-1/16 inch |
| H<sub>1</sub> | 4-1/16 inch |
| c | 0 inch |
| A | 15/16 inch |
| H | 2-33/64 inch |
| N | RP3/4 |
| D | 1-9/16 inch |
| j | 3/4 inch |
| B | 1.3425 inch |
| S | 0.563 inch |
| Mass | 2 lbs |
