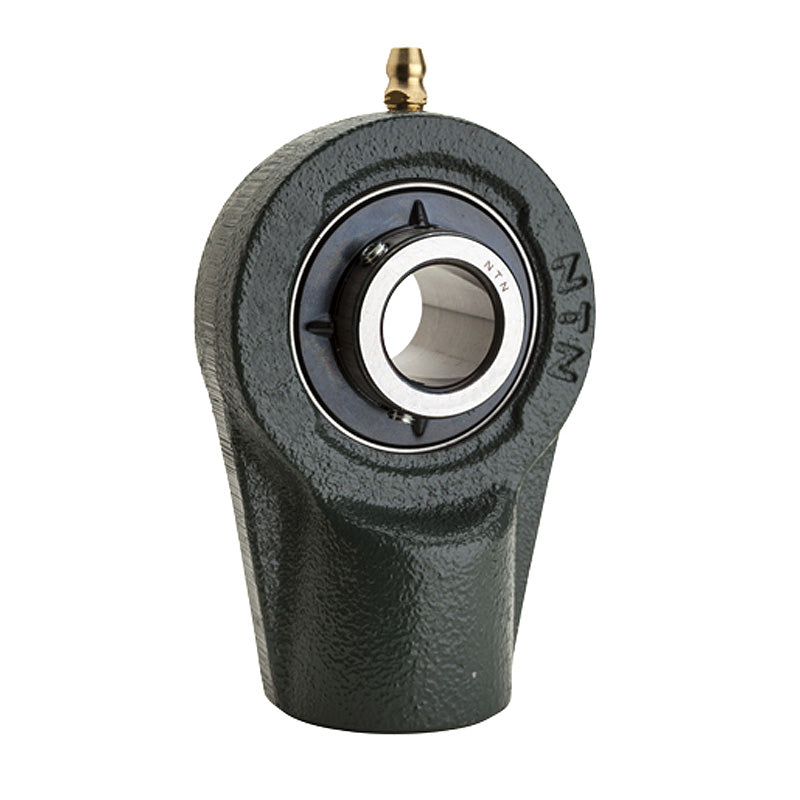

NTN M-UCHB212-206D1 Imperial Cast Iron Hanger Bearing Unit with 2-3/8 inch Bore Insert - Allow 2-3 Days
NTN M-UCHB212-206D1 Imperial Cast Iron Hanger Bearing Unit with 2-3/8 inch Bore Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCHB200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Style:
- UCHB
Technical
Technical
| Shaft diameter | 2-3/8 inch |
|---|---|
| L | 5-19/32 inch |
| H<sub>1</sub> | 6-13/16 inch |
| c | 11/32 inch |
| A | 1-21/32 inch |
| H | 4-1/64 inch |
| N | RP1-1/4 |
| D | 2-3/8 inch |
| j | 1-3/32 inch |
| B | 2.563 inch |
| S | 1 inch |
| Mass | 8.2 lbs |
