SKU: M-UCUP203D1-NTN

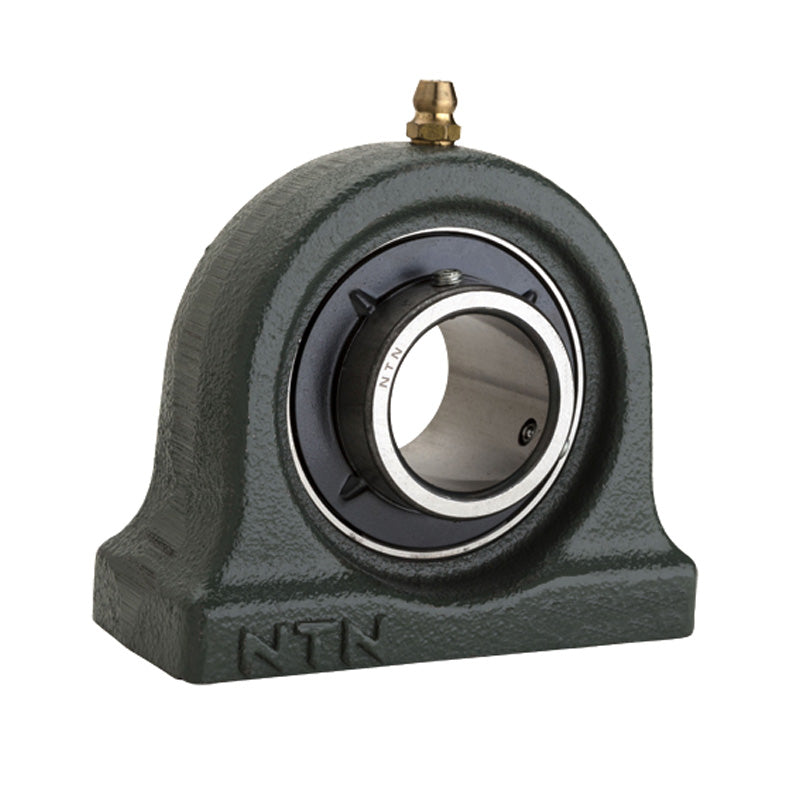

NTN M-UCUP203D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 17mm Bore Insert - Allow 2-3 Days
NTN M-UCUP203D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 17mm Bore Insert - Allow 2-3 Days
Regular price
$41.22
ex VAT
Regular price
Sale price
$41.22
ex VAT
In stock
Price Break
3+
$30.71
4+
$29.47
9+
$28.85
19+
$27.92
49+
$27.30
99+
$25.75
499+
$21.71
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Style:
- UCUP
- Bolt Hole Centres:
- 52mm
Technical
Technical
| Shaft diameter | 17mm |
|---|---|
| H | 30.2mm |
| L | 76mm |
| J | 52mm |
| A | 38mm |
| j | 13mm |
| H<sub>1</sub> | 11mm |
| H<sub>2</sub> | 62mm |
| B | 31mm |
| S | 12.7mm |
| N | M10X1.5 |
| Mass | 0.6 kg |
