SKU: M-UCUP204D1-NTN

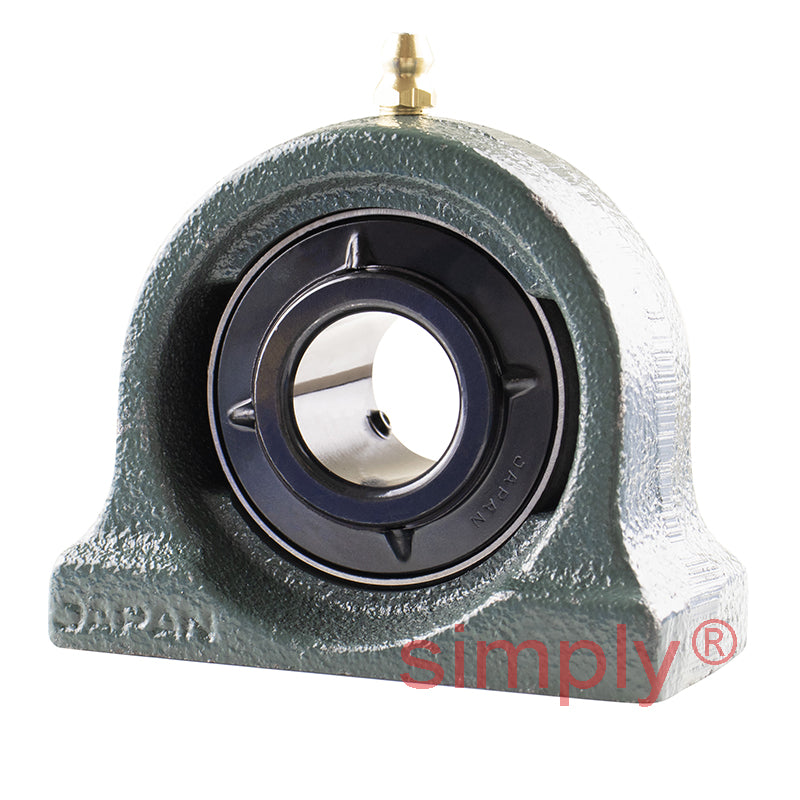

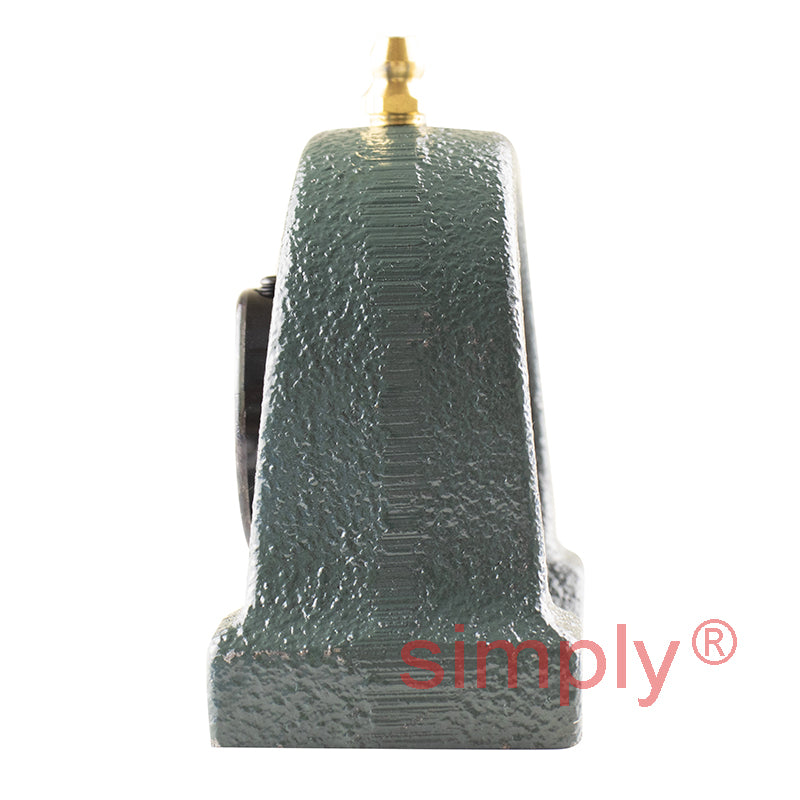

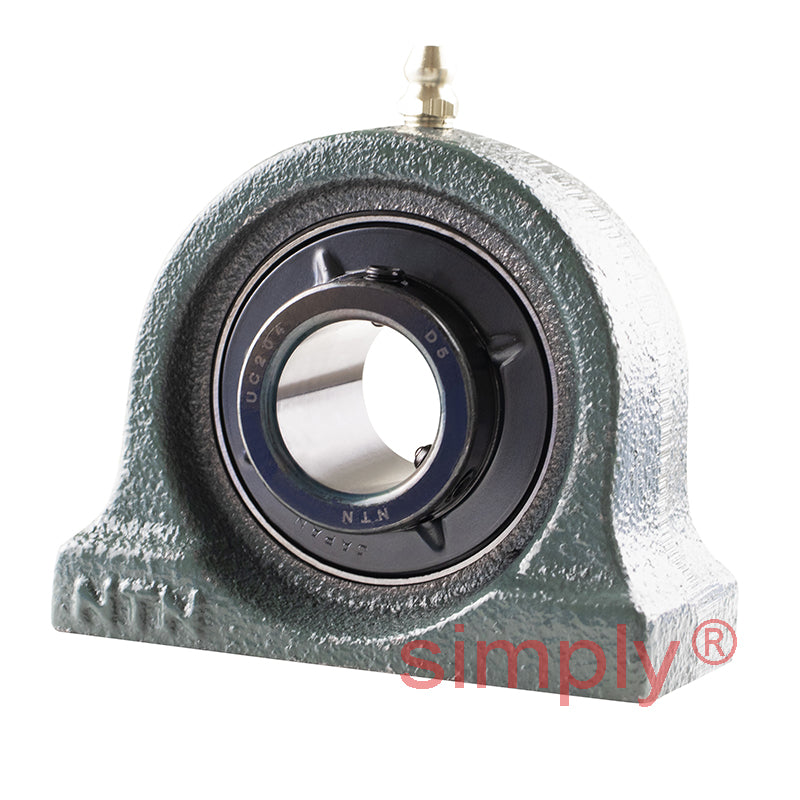

NTN M-UCUP204D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 20mm Bore Insert

NTN M-UCUP204D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 20mm Bore Insert
$38.11 ex VAT
$38.11 ex VAT
Sale Sold out

In stock

Price Break
3+ $25.53
4+ $24.09
9+ $23.80
19+ $23.52
49+ $23.23
99+ $22.94
499+ $21.51
999+ $21.22
1999+ $20.94
2999+ $20.65
4999+ $20.08

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
20mm
Style:
UCUP
Bolt Hole Centres:
52mm
Technical
Shaft diameter 20mm
H 30.2mm
L 76mm
J 52mm
A 38mm
j 13mm
H<sub>1</sub> 11mm
H<sub>2</sub> 62mm
B 31mm
S 12.7mm
N M10X1.5
Mass 0.6 kg
