SKU: M-UCUP208-108D1-NTN

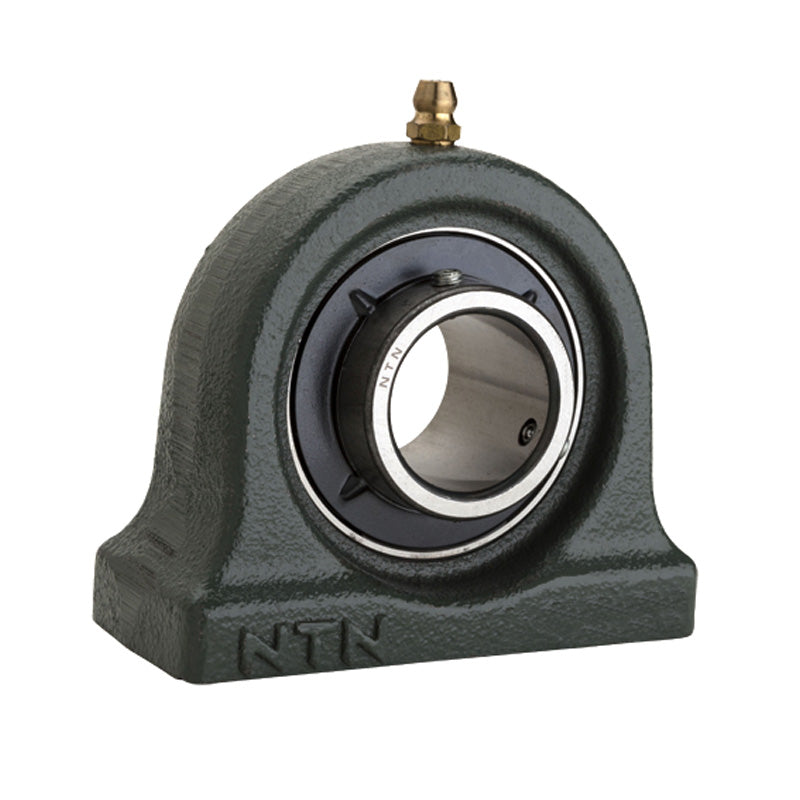

NTN M-UCUP208-108D1 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing Supplied with 1-1/2 inch Bore Insert - Allow 2-3 Days
NTN M-UCUP208-108D1 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing Supplied with 1-1/2 inch Bore Insert - Allow 2-3 Days
Out of stock
Description
Description
|
UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UCUP
- Bolt Hole Centres:
- 3-5/16 inch
Technical
Technical
| Shaft diameter | 1-1/2 inch |
|---|---|
| H | 1-15/16 inch |
| L | 4-9/16 inch |
| J | 3-5/16 inch |
| A | 2-1/8 inch |
| j | 25/32 inch |
| H<sub>1</sub> | 1/2 inch |
| H<sub>2</sub> | 3-15/16 inch |
| B | 1.937 inch |
| S | 0.748 inch |
| N | M14X2 |
| Mass | 4 lbs |
