SKU: M-UELFC207D1-NTN

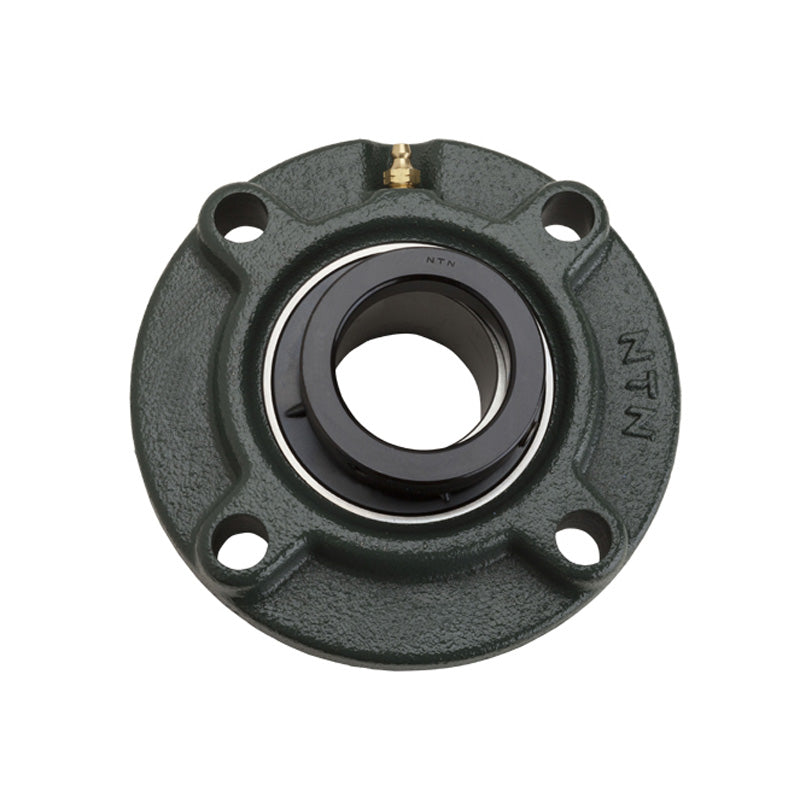

NTN M-UELFC207D1 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELFC207D1 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$55.41
ex VAT
Regular price
Sale price
$55.41
ex VAT
In stock
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UELFC
- Pitch Circle Diameter:
- 77.8mm
Technical
Technical

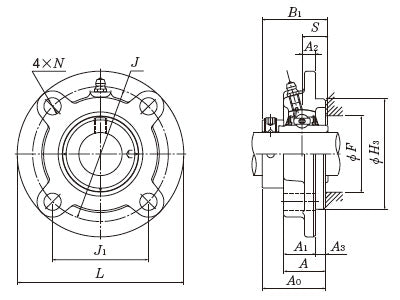

| Shaft diameter | 35mm |
|---|---|
| L | 135mm |
| J | 110mm |
| (J<sub>1</sub> | 77.8mm |
| A<sub>2</sub> | 11mm |
| N | 14mm |
| A<sub>3</sub> | 8mm |
| A<sub>1</sub> | 26mm |
| A | 34mm |
| H<sub>3</sub> | 90mm |
| A<sub>0</sub> | 51.3mm |
| B<sub>1</sub> | 51.1mm |
| S | 18.8mm |
| F min. | 53mm |
| Fixing bolt | M12 |
| Mass | 1.8 kg |
