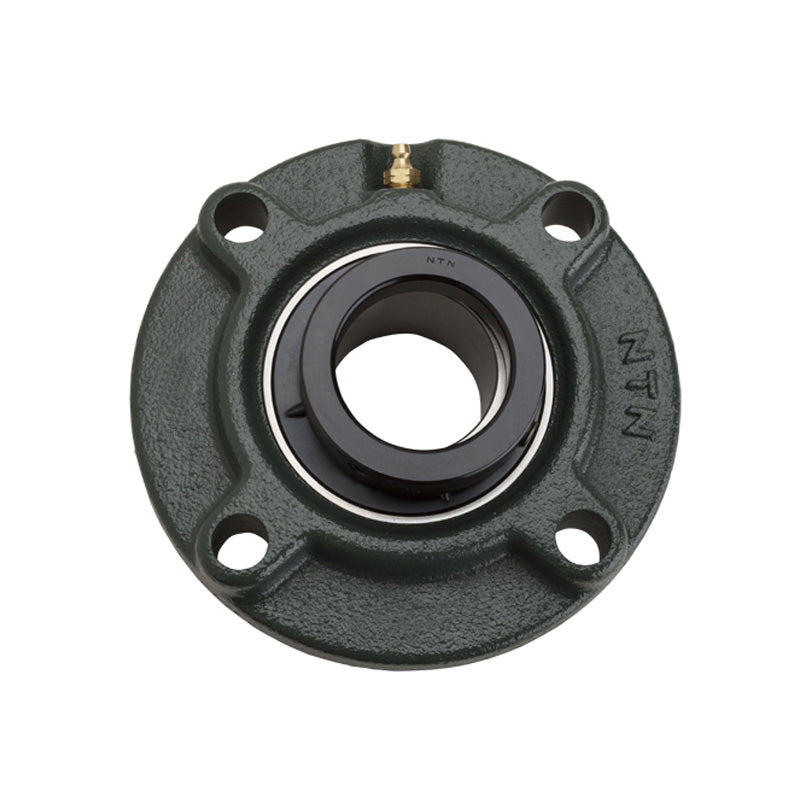

NTN M-UELFC210D1 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELFC210D1 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$103.02
ex VAT
Regular price
Sale price
$103.02
ex VAT
In stock
Price Break
3+
$76.74
4+
$73.64
9+
$72.09
19+
$69.77
49+
$68.22
99+
$64.34
499+
$54.26
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UELFC200 Series 4 Bolt Cast Iron Round Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UELFC
- Pitch Circle Diameter:
- 97.6mm
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| L | 165mm |
| J | 138mm |
| (J<sub>1</sub> | 97.6mm |
| A<sub>2</sub> | 10mm |
| N | 16mm |
| A<sub>3</sub> | 12mm |
| A<sub>1</sub> | 28mm |
| A | 40mm |
| H<sub>3</sub> | 110mm |
| A<sub>0</sub> | 60.1mm |
| B<sub>1</sub> | 62.7mm |
| S | 24.6mm |
| F min. | 69mm |
| Fixing bolt | M14 |
| Mass | 3.1 kg |
