SKU: M-UELP209D1-NTN

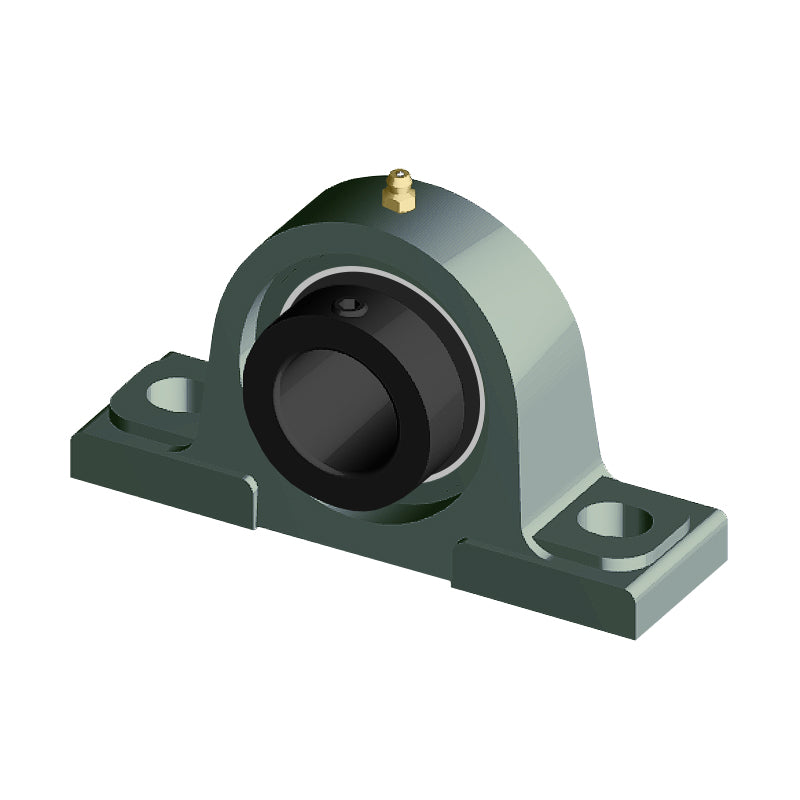

NTN M-UELP209D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELP209D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
$88.28
ex VAT
Regular price
Sale price
$88.28
ex VAT
In stock
Price Break
3+
$65.77
4+
$63.11
9+
$61.78
19+
$59.79
49+
$58.46
99+
$55.14
499+
$46.50
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UELP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UELP
- Bolt Hole Centres:
- 146mm
Technical
Technical
| Shaft diameter | 45mm |
|---|---|
| H | 54mm |
| L | 190mm |
| J | 146mm |
| A | 54mm |
| N | 17mm |
| N<sub>1</sub> | 20mm |
| H<sub>1</sub> | 20mm |
| H<sub>2</sub> | 106mm |
| L<sub>1</sub> | 60mm |
| B<sub>1</sub> | 56.3mm |
| S | 21.4mm |
| Fixing bolt | M14 |
| Mass | 2.3 kg |
