SKU: M10x1.5-C6-SERFLANUT-BZP-OJ
Unifix M10x15 - Class 6 Steel Serrated Flange Nut DIN 6923 with 1.5mm Pitch and Bright Zinc Plated Finish
Unifix M10x15 - Class 6 Steel Serrated Flange Nut DIN 6923 with 1.5mm Pitch and Bright Zinc Plated Finish
Regular price
$1.13
ex VAT
Regular price
Sale price
$1.13
ex VAT
In stock
Price Break
10+
$0.43
20+
$0.29
50+
$0.18
100+
$0.13
500+
$0.07
1000+
$0.05
Quantity
Couldn't load pickup availability
Description
Description
Steel Serrated Flange Nuts with Bright Zinc Plated Finish: These nuts feature a serrated flange that acts as a washer, distributing the load and gripping the mating surface to combat vibration. The bright zinc-plated finish provides corrosion resistance, making these nuts ideal for secure, long-lasting connections in industrial and mechanical applications.
Benefits: Combats vibration, distributes load, offers corrosion resistance for secure connections.
- Brand / Quality:
- Unifix - High Quality
- Thread Size:
- M10
- Pitch:
- 1.5mm
- Conformity:
- DIN 6923
- Finish:
- Bright Zinc Plated Finish
Technical
Technical

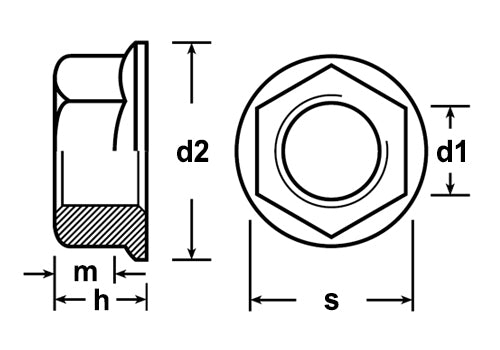

| d1 | 10mm |
|---|---|
| d2 | 21.8mm |
| m | 9.6mm |
| s | 15mm |
| h | 11.4mm |
| Thread Pitch | 1.5mm |
| Weight Kg | 0.0116 kg |
