SKU: M10x1.5-C8-INSFLANUT-BZP-OJ
Unifix M10x15 - Class 8 Steel Insert Flange Nut DIN 6926 with 1.5mm Pitch and Bright Zinc Plated Finish
Unifix M10x15 - Class 8 Steel Insert Flange Nut DIN 6926 with 1.5mm Pitch and Bright Zinc Plated Finish
Regular price
$1.13
ex VAT
Regular price
Sale price
$1.13
ex VAT
In stock
Price Break
10+
$0.43
20+
$0.29
50+
$0.18
100+
$0.15
500+
$0.09
1000+
$0.08
Quantity
Couldn't load pickup availability
Description
Description

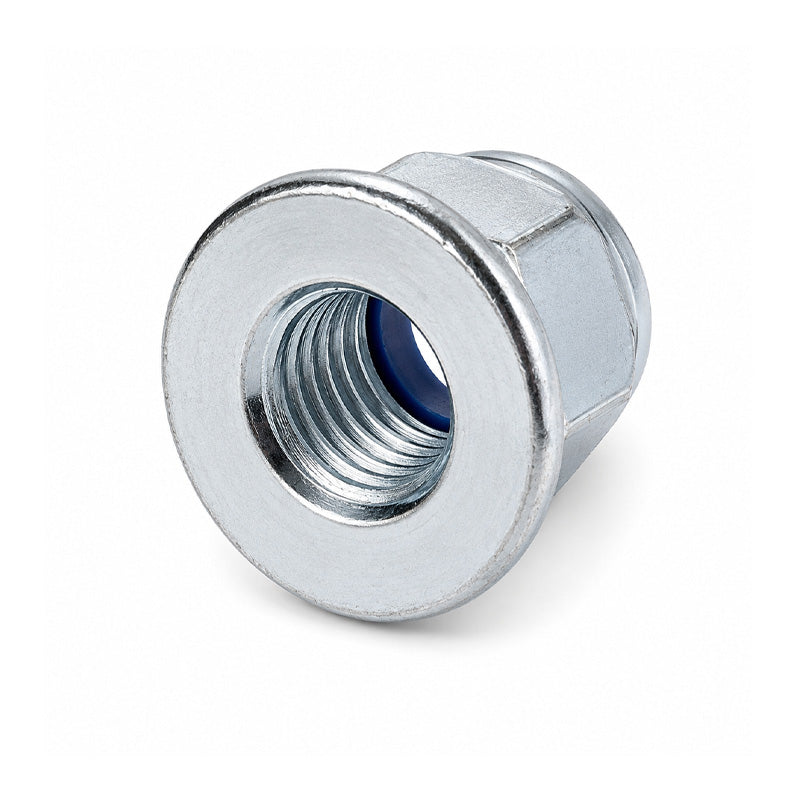

Steel Insert Flange Nuts with Bright Zinc Plated Finish: These nuts prevent loosening from vibration with a nylon insert that grips the thread as the nut tightens. The flange design helps distribute the load, while the zinc-plated finish offers corrosion resistance, ensuring secure, long-lasting performance in industrial and mechanical applications.
Benefits: Prevents loosening, distributes load, offers corrosion resistance.
- Brand / Quality:
- Unifix - High Quality
- Thread Size:
- M10
- Pitch:
- 1.5mm
- Conformity:
- DIN 6926
- Finish:
- Bright Zinc Plated Finish
Technical
Technical
| d1 | 10mm |
|---|---|
| d2 | 21.8mm |
| e | 20.03mm |
| m | 11mm |
| s | 15mm |
| h | 13mm |
| Thread Pitch | 1.5mm |
| Weight Kg | 0.0121 kg |
