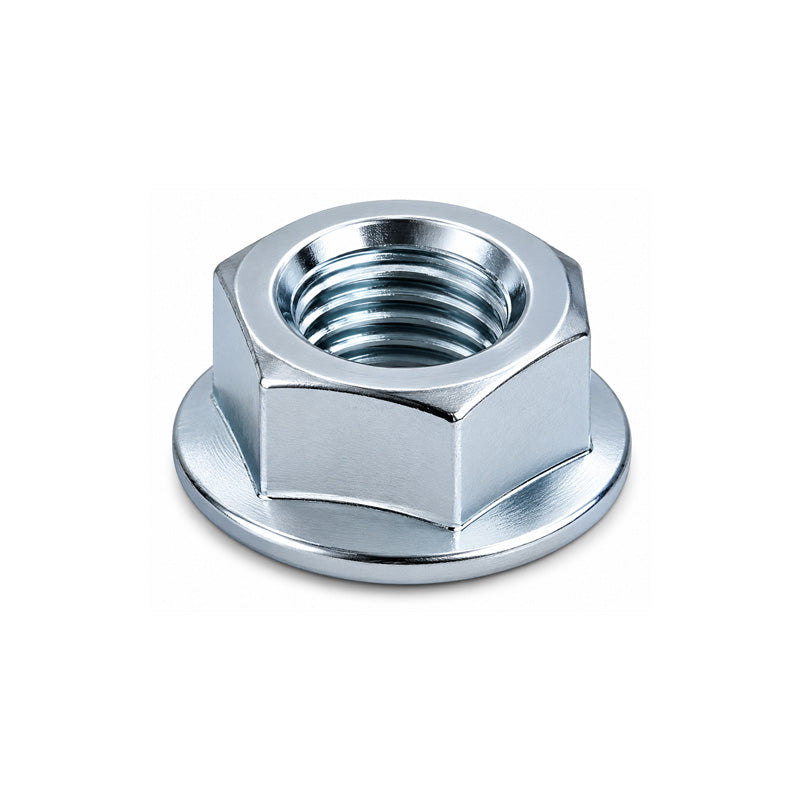

• M12 Bright Zinc Plated High Tensile Steel Flanged Nut
1 1

SKU: M12-FN12

M12 Bright Zinc Plated High Tensile Steel Flanged Nut

M12 Bright Zinc Plated High Tensile Steel Flanged Nut
$1.13 ex VAT
$1.13 ex VAT
Sale Sold out

In stock

Price Break
10+ $0.47
20+ $0.36
50+ $0.26
100+ $0.21
500+ $0.17
1000+ $0.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Flanged Nut: A standard 6 sided bright zinc plated high tensile flanged steel nut. A type of fastener with a threaded hole. Nuts are almost always used opposite a mating bolt to fasten a stack of parts together. The two partners are kept together by a combination of their threads' friction, a slight stretch of the bolt, and compression of the parts.
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
12mm
Outside Diameter:
19mm approx.
Flange Width:
24mm approx.
Thickness:
12mm approx.
Pitch:
1.75mm
Technical
Inside Diameter (d) 12mm approx.
Outside Diameter (D) 19mm approx.
Width (a) 12mm approx.
Flange Width (b) 24mm approx.
Pitch 1.75mm Coarse Thread
