SKU: M12x1.75-C8-INSFLANUT-BZP-OJ

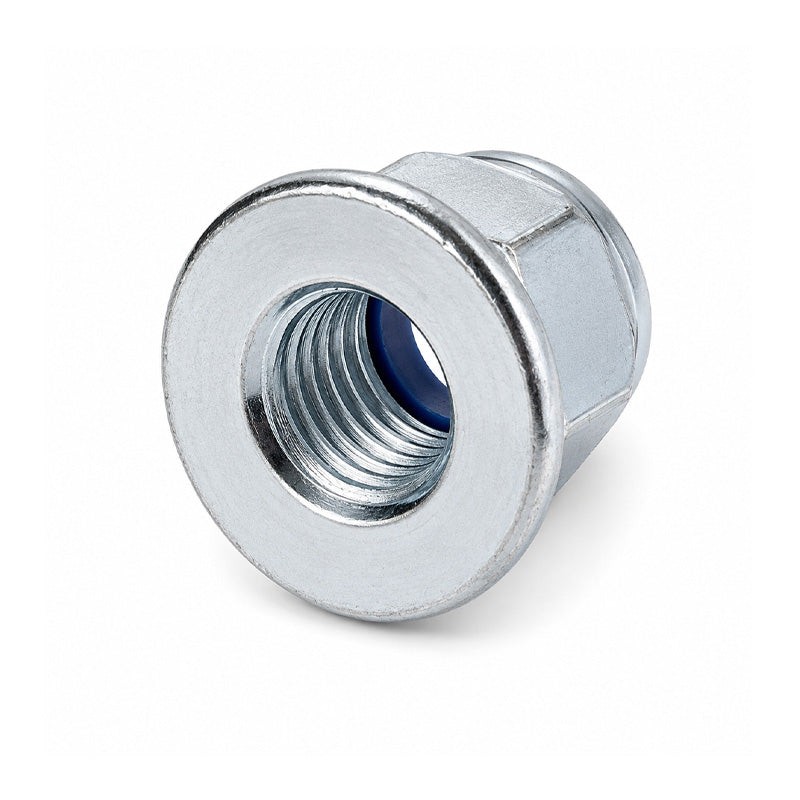

Unifix M12x18 - Class 8 Steel Insert Flange Nut DIN 6926 with 1.75mm Pitch and Bright Zinc Plated Finish
Unifix M12x18 - Class 8 Steel Insert Flange Nut DIN 6926 with 1.75mm Pitch and Bright Zinc Plated Finish
Regular price
$1.13
ex VAT
Regular price
Sale price
$1.13
ex VAT
In stock
Price Break
10+
$0.47
20+
$0.36
50+
$0.26
100+
$0.21
500+
$0.17
1000+
$0.13
Quantity
Couldn't load pickup availability
Description
Description
Steel Insert Flange Nuts with Bright Zinc Plated Finish: These nuts prevent loosening from vibration with a nylon insert that grips the thread as the nut tightens. The flange design helps distribute the load, while the zinc-plated finish offers corrosion resistance, ensuring secure, long-lasting performance in industrial and mechanical applications.
Benefits: Prevents loosening, distributes load, offers corrosion resistance.
- Brand / Quality:
- Unifix - High Quality
- Thread Size:
- M12
- Pitch:
- 1.75mm
- Conformity:
- DIN 6926
- Finish:
- Bright Zinc Plated Finish
Technical
Technical

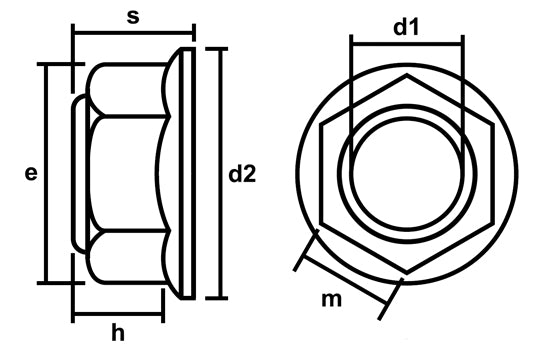

| d1 | 12mm |
|---|---|
| d2 | 26mm |
| e | 23.9mm |
| m | 13mm |
| s | 18mm |
| h | 15.5mm |
| Thread Pitch | 1.75mm |
| Weight Kg | 0.022 kg |
