SKU: M1800-11

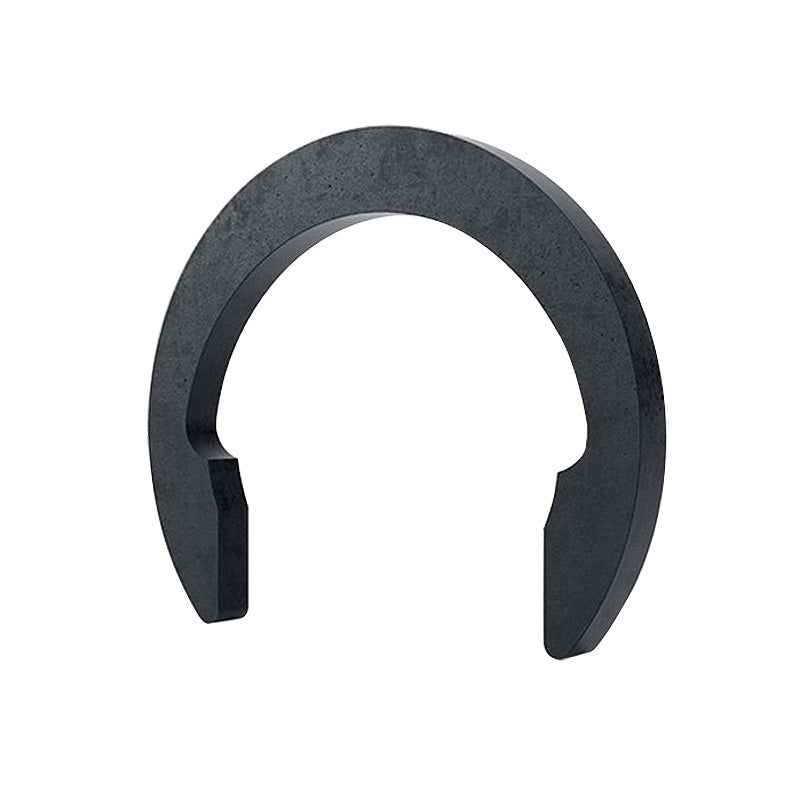

M1800-11 Metric Crescent Ring for 11mm Diameter Shafts
M1800-11 Metric Crescent Ring for 11mm Diameter Shafts
Regular price
$1.13
ex VAT
Regular price
Sale price
$1.13
ex VAT
Equivalent to: M1800-11
In stock
Price Break
10+
$0.47
20+
$0.36
50+
$0.26
100+
$0.21
500+
$0.17
1000+
$0.13
Quantity
Couldn't load pickup availability
Description
Description
Crescent Rings: These crescent rings are an alternative clip style, similar to standard style circlips.
The advantage of using these crescent rings is that they provide greater clearance around the outside diameter as they do not have lugs.
Benefits: Cost effective replacement, durable, removable.
- Brand / Quality:
- Simply Crescent Rings - Economy Quality
- Shaft Size:
- 11mm
- Thickness:
- 1mm
Technical
Technical
| Shaft Size (S) | 11mm |
|---|---|
| Shaft Tolerance | -0.10 to +0.00 (mm) |
| Thickness (t) | 1mm |
| Thickness Tolerance | +0.00 to -0.06 (mm) |
| Free Diameter (D) | 9.65mm |
| Free Diameter Tolerance | +0.18 (mm) |
| Circlip in Groove | 13.6mm |
| Beam | 1.8mm |
