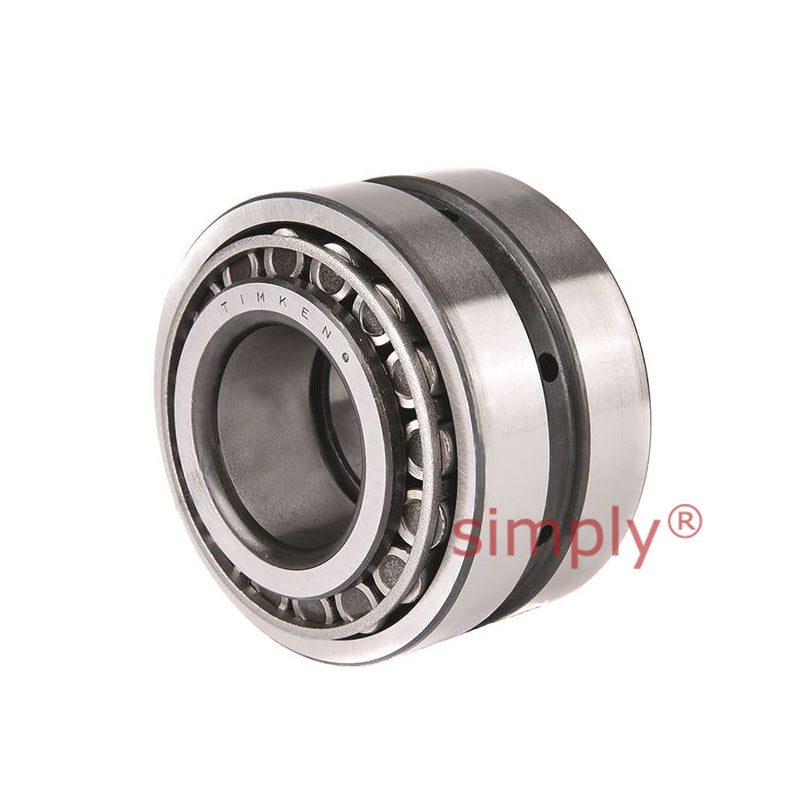

Timken M224748/M224710DC/M224748XA TDO Double Outer Race Taper Roller Bearing 4.7234x6.875x3.0625x2.4375 inch
Timken M224748/M224710DC/M224748XA TDO Double Outer Race Taper Roller Bearing 4.7234x6.875x3.0625x2.4375 inch
Out of stock
Description
Description

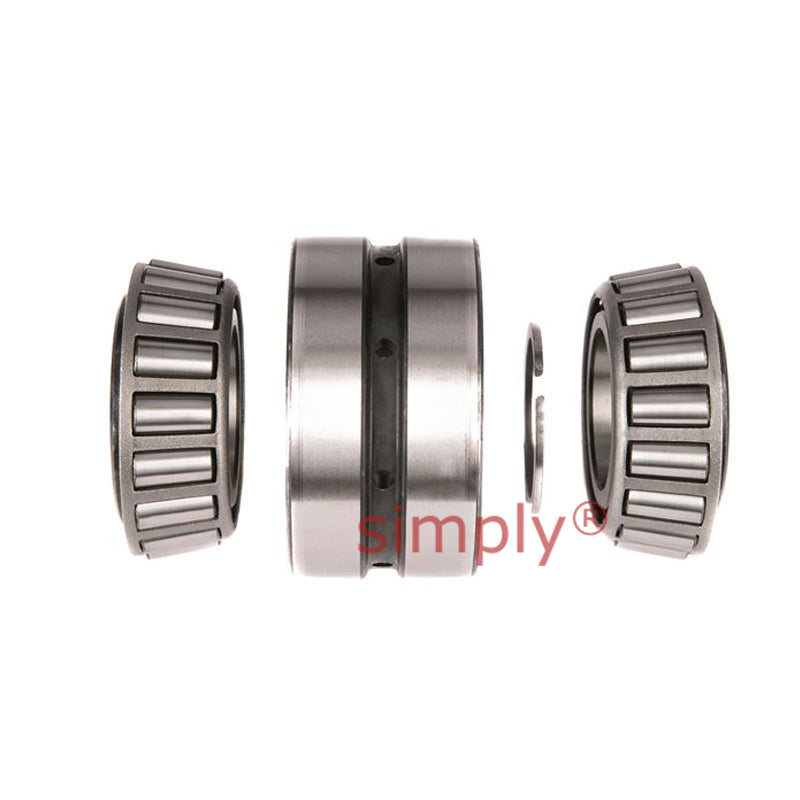

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 119.98mm = 4.7234 inch
- Outside Diameter:
- 174.63mm = 6.875 inch
- Width:
- 77.79mm = 3.0625 inch
Technical
Technical
| d | 119.975mm = 4.7234 inch |
|---|---|
| D | 174.625mm = 6.875 inch |
| T | 77.788mm = 3.0625 inch |
| C | 61.912mm = 2.4375 inch |
| Dynamic (1) C1 | 394000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.03 |
| Factors (5) Y2 | 3.02 |
| Dynamic (2) C90 | 58700N |
| Dynamic (2) Ca90 | 33400N |
| Dynamic (2) C90(2) | 102000N |
| Factors (5) K | 1.76 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 134mm = 5.28 inch |
| Housing max shaft fillet radius r(3) | 0.8mm = 0.03 inch |
| Housing backing shoulder diameter Da | 168mm = 6.61 inch |
| Pin Ka | 14.2mm = 0.56 inch |
| Pin Kb | 3.8mm = 0.15 inch |
| G1 | 279 |
| G2 | 86.6 |
| Cg | 0.1575 |
