• M5 Bright Zinc Plated High Tensile Steel Flanged Nut
1 1

SKU: M5-FN5

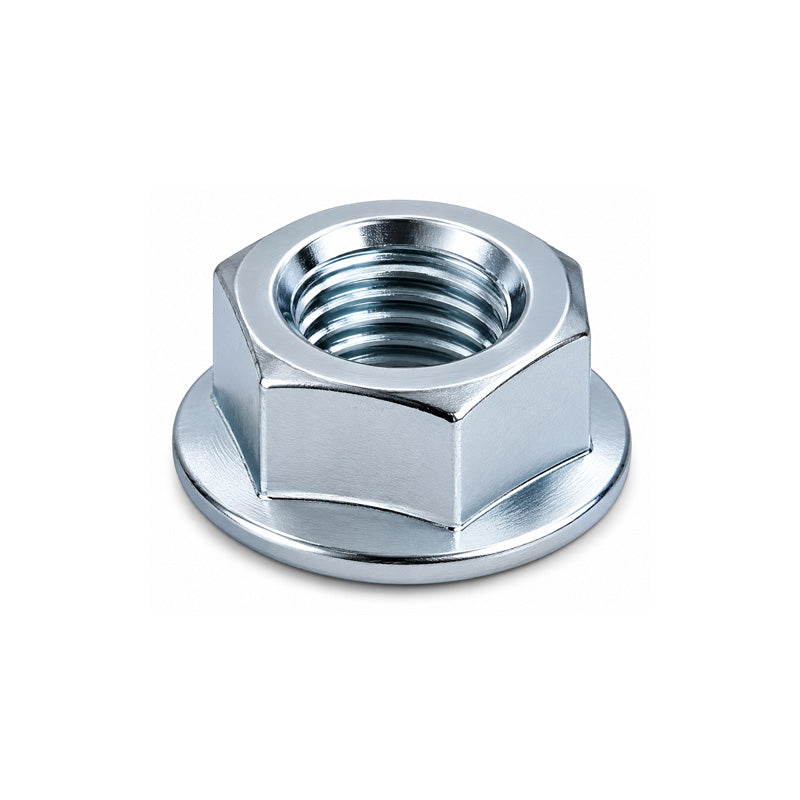

M5 Bright Zinc Plated High Tensile Steel Flanged Nut

M5 Bright Zinc Plated High Tensile Steel Flanged Nut
$1.13 ex VAT
$1.13 ex VAT
Sale Sold out

In stock

Price Break
10+ $0.43
20+ $0.29
50+ $0.18
100+ $0.11
500+ $0.04
1000+ $0.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Flanged Nut: A standard 6 sided bright zinc plated high tensile flanged steel nut. A type of fastener with a threaded hole. Nuts are almost always used opposite a mating bolt to fasten a stack of parts together. The two partners are kept together by a combination of their threads' friction, a slight stretch of the bolt, and compression of the parts.
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
5mm
Outside Diameter:
8mm approx.
Flange Width:
11mm approx.
Thickness:
5mm approx.
Pitch:
0.8mm

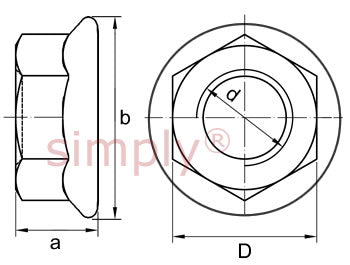

Technical
Inside Diameter (d) 5mm approx.
Outside Diameter (D) 8mm approx.
Width (a) 5mm approx.
Flange Width (b) 11mm approx.
Pitch 0.8mm Coarse Thread
