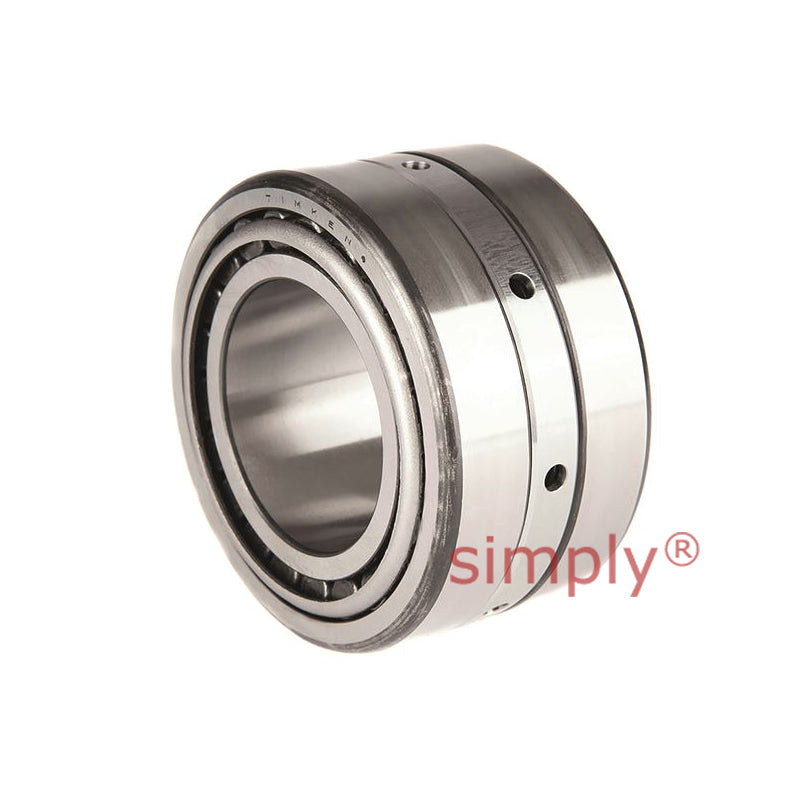

Timken M757447D/M757410/M757410EA TDI Double Inner Race Taper Roller Bearing 11.994x17.246x5.4375x5.0625 inch
Timken M757447D/M757410/M757410EA TDI Double Inner Race Taper Roller Bearing 11.994x17.246x5.4375x5.0625 inch
Out of stock
Description
Description

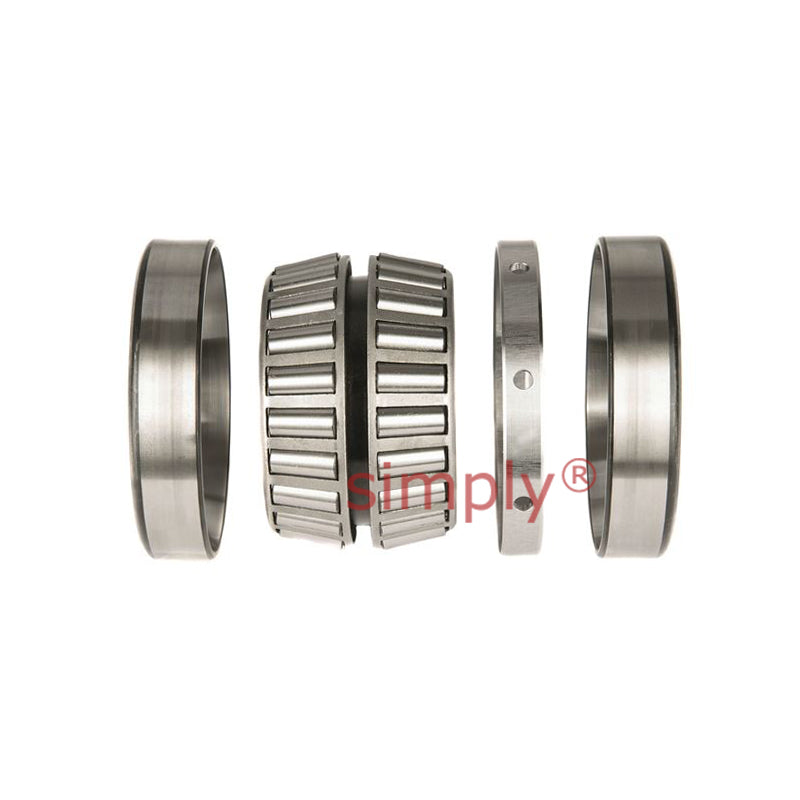

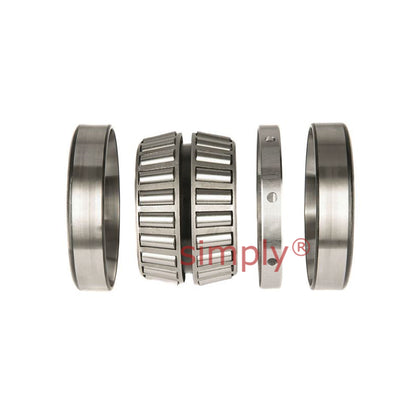

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 304.65mm = 11.994 inch
- Outside Diameter:
- 438.05mm = 17.246 inch
- Width:
- 138.11mm = 5.437 (5-7/16) inch
Technical
Technical
| d | 304.648mm = 11.994 inch |
|---|---|
| D | 438.048mm = 17.246 inch |
| T | 138.112mm = 5.4375 inch |
| C | 128.588mm = 5.0625 inch |
| Dynamic (1) C1 | 1880000N |
| Factors (5) e | 0.47 |
| Factors (5) Y1 | 1.43 |
| Factors (5) Y2 | 2.12 |
| Dynamic (2) C90 | 279000N |
| Dynamic (2) Ca90 | 226000N |
| Dynamic (2) C90(2) | 486000N |
| Factors (5) K | 1.24 |
| Shaft max shaft fillet radius R (3) | 3.3mm = 0.13 inch |
| Shaft backing shoulder diameter da | 328mm = 12.91 inch |
| Housing max shaft fillet radius r (3) | 4.8mm = 0.19 inch |
| Housing backing shoulder diameter Db | 407mm = 16.02 inch |
| G1 | 1840 |
| G2 | 253 |
| Cg | 0.1775 |
